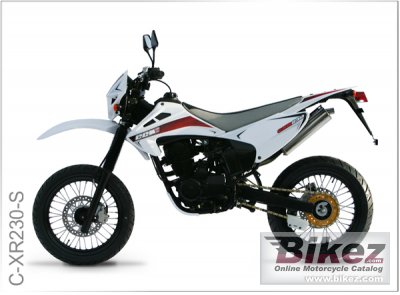

CCM C-XR230-S 20092009 CCM C-XR230-S specifications, pictures, reviews and rating |
| CCM's profilation of this bike |
| The C-XR230 is excellent value for money. |
| General information | |
|---|---|
| Model name | CCM C-XR230-S |
| Year model | 2009 |
| Type | Super motard |
| Rating |
Do you know this bike? Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission | |
| Engine size | 230.0 ccm (14.03 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Effect | 18.0 HP (13.1 kW)) |
| Compression | 9.2:1 |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | Electronic ignition (CDI) |
| Cooling system | Air |
| Chassis, suspension, brakes and wheels | |
| Frame type | Tubular welded steel |
| Front suspension | Conventional 40mm |
| Rear suspension | Single shock - adjustable preload |
| Front brakes | Single disc |
| Rear brakes | Single disc |
| Physical measures and capacities | |
| Dry weight | 118.0 kg (260.1 pounds) |
| Power/weight ratio | 0.1525 HP/kg |
| Seat height | 920 mm (36.2 inches) If adjustable, lowest setting. |
| Ground clearance | 300 mm (11.8 inches) |
| Wheelbase | 1350 mm (53.1 inches) |
| Fuel capacity | 8.80 litres (2.32 US gallons) |
| Other specifications | |
| Color options | White |
| Comments | Wheels 21´ and 18´. |
