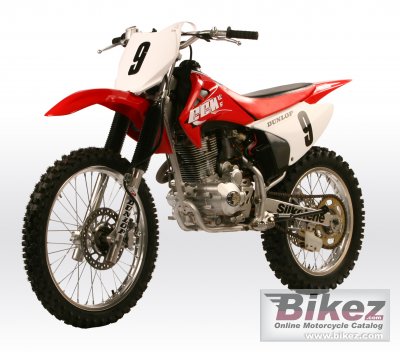

CCM C-XR230-M 20082008 CCM C-XR230-M specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Model | CCM C-XR230-M |
| Year | 2008 |
| Category | Cross / motocross |
| Rating |
Do you know this bike? Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission | |
| Displacement | 230.0 ccm (14.03 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Power | 18.0 HP (13.1 kW)) @ 8500 RPM |
| Compression | 9.2:1 |
| Bore x stroke | 67.0 x 65.0 mm (2.6 x 2.6 inches) |
| Fuel system | Carburettor |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | Electronic ignition |
| Lubrication system | Wet Sump |
| Cooling system | Air |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Conventional 40mm |
| Rear suspension | Single shock - adjustable preload |
| Front brakes | Single disc |
| Rear brakes | Single disc |
| Physical measures and capacities | |
| Dry weight | 118.0 kg (260.1 pounds) |
| Power/weight ratio | 0.1525 HP/kg |
| Seat height | 800 mm (31.5 inches) If adjustable, lowest setting. |
| Ground clearance | 340 mm (13.4 inches) |
| Wheelbase | 1350 mm (53.1 inches) |
| Other specifications | |
| Color options | Red/white |
| Starter | Electric |
| Comments | Wheels 21´ and 18´. |
