| CCM's profilation of this bike |
| The C-XR230 is excellent value for money, offering an enduro, supermoto and entry level MX machine in one punchy package, which comes with the luxury of an electric start as standard. |
|
General information |
|
Motorcycle name
|

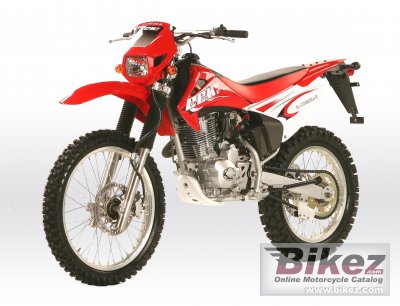

CCM C-XR230-E |
|
Year
|
2008 |
|
Category
|
Enduro / offroad |
|
Rating
|
2.6 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
230.0 ccm (14.03 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Power
|
18.0 HP (13.1 kW)) @ 8500 RPM |
|
Compression
|
9.2:1 |
|
Bore x stroke
|
67.0 x 65.0 mm (2.6 x 2.6 inches) |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Electronic ignition (CDI) |
|
Lubrication system
|
Wet Sump |
|
Cooling system
|
Air |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Conventional 40mm |
|
Rear suspension
|
Single shock - adjustable preload |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Single disc |
|
Physical measures and capacities |
|
Dry weight
|
118.0 kg (260.1 pounds) |
|
Power/weight ratio
|
0.1525 HP/kg |
|
Seat height
|
800 mm (31.5 inches) If adjustable, lowest setting. |
|
Ground clearance
|
340 mm (13.4 inches) |
|
Wheelbase
|
1350 mm (53.1 inches) |
|
Fuel capacity
|
8.80 litres (2.32 US gallons) |
|
Other specifications |
|
Starter
|
Electric |
