| CCM's profilation of this bike |
| This superb lightweight multi purpose model has proven its pedigree with its success at the British national shorttrack series. |
| General information |
|---|

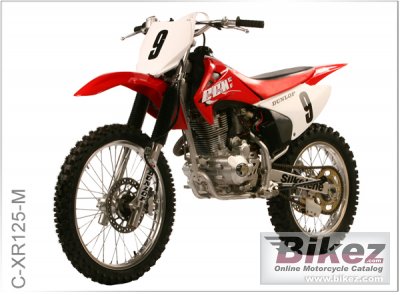

| Model | CCM C-XR125-M |
| Year | 2009 |
| Category | Cross / motocross |
| Rating | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission |
|---|
| Displacement | 124.0 ccm (7.57 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Compression | 9.0:1 |
| Bore x stroke | 56.5 x 49.5 mm (2.2 x 1.9 inches) |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Lubrication system | Wet sump |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type | Tubular welded steel |
| Front suspension | Conventional 40mm |
| Rear suspension | Single shock - adjustable preload |
| Front brakes | Single disc |
| Rear brakes | Single disc |
| Physical measures and capacities |
|---|
| Dry weight | 118.0 kg (260.1 pounds) |
| Seat height | 800 mm (31.5 inches) If adjustable, lowest setting. |
| Ground clearance | 340 mm (13.4 inches) |
| Wheelbase | 1350 mm (53.1 inches) |
| Fuel capacity | 8.80 litres (2.32 US gallons) |
| Other specifications |
|---|
| Color options | Red/white |
| Starter | Electric |
| Comments | Wheels 21´ and 18´. |
