| CCM's profilation of this bike |
| This superb lightweight multi purpose model has proven its pedigree with its success at the British national shorttrack series. |
|
General information |
|
Motorcycle name
|

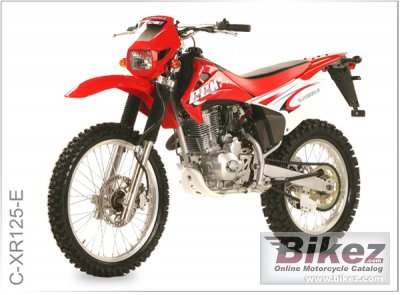

CCM C-XR125-E |
|
Year
|
2009 |
|
Category
|
Enduro / offroad |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Displacement
|
124.0 ccm (7.57 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Compression
|
9.0:1 |
|
Bore x stroke
|
56.5 x 49.5 mm (2.2 x 1.9 inches) |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
C.D.I. |
|
Lubrication system
|
Wet Sump |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Tubular welded steel |
|
Front suspension
|
Conventional 40mm |
|
Rear suspension
|
Single shock - adjustable preload |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Single disc |
|
Physical measures and capacities |
|
Dry weight
|
118.0 kg (260.1 pounds) |
|
Seat height
|
920 mm (36.2 inches) If adjustable, lowest setting. |
|
Ground clearance
|
340 mm (13.4 inches) |
|
Fuel capacity
|
8.80 litres (2.32 US gallons) |
|
Other specifications |
|
Color options
|
Red |
|
Starter
|
Electric |
|
Comments
|
Wheels 21´, 18´ |
