| CCM's profilation of this bike |
| In trail trim you have a bike on which you can explore, knowing that you can count on the durability and reliability. |
|
General information |
|
Motorcycle name
|

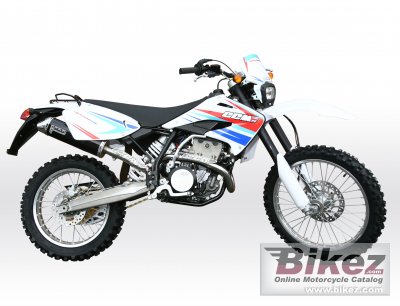

CCM 450DS Trail |
|
Year of manufacture
|
2008 |
|
Type
|
Trial |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
443.0 ccm (27.03 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Output
|
40.0 HP (29.2 kW)) |
|
Bore x stroke
|
95.0 x 62.5 mm (3.7 x 2.5 inches) |
|
Fuel system
|
Carburettor. 36mm Dellorto |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Electronic ignition (CDI) |
|
Lubrication system
|
Dry Sump |
|
Cooling system
|
Liquid |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
WP 43mm upside down |
|
Rear suspension
|
WP PDS |
|
Front brakes
|
Single disc |
|
Diameter
|
280 mm (11.0 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
260 mm (10.2 inches) |
|
Physical measures and capacities |
|
Dry weight
|
128.0 kg (282.2 pounds) |
|
Power/weight ratio
|
0.3125 HP/kg |
|
Seat height
|
830 mm (32.7 inches) If adjustable, lowest setting. |
|
Fuel capacity
|
10.00 litres (2.64 US gallons) |
|
Other specifications |
|
Starter
|
Electric |
