| CCM's profilation of this bike |
| As a supermoto model, the 404 DS has a proven race pedigree that has brought it European track success. |
|
General information |
|
Model name
|

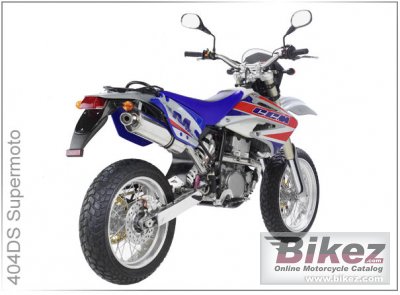

CCM 404 DS Supermoto |
|
Year model
|
2010 |
|
Type
|
Super motard |
|
Rating
|
3.6 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
398.0 ccm (24.29 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Effect
|
40.0 HP (29.2 kW)) |
|
Compression
|
12.2:1 |
|
Bore x stroke
|
90.0 x 62.6 mm (3.5 x 2.5 inches) |
|
Fuel system
|
Carburettor. Keihin FCR39 |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
CDI |
|
Lubrication system
|
Dry Sump |
|
Cooling system
|
Liquid |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Tubular steel with oil |
|
Front suspension
|
WP 43mm upside down fork |
|
Rear suspension
|
WP PDS |
|
Front brakes
|
Single disc |
|
Diameter
|
280 mm (11.0 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
260 mm (10.2 inches) |
|
Physical measures and capacities |
|
Dry weight
|
128.0 kg (282.2 pounds) |
|
Power/weight ratio
|
0.3125 HP/kg |
|
Seat height
|
850 mm (33.5 inches) If adjustable, lowest setting. |
|
Fuel capacity
|
12.00 litres (3.17 US gallons) |
|
Other specifications |
|
Color options
|
Blue/red/white |
|
Starter
|
Electric |
|
Comments
|
British brand. |
