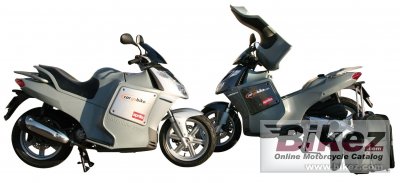

Cargobike AS300 20112011 Cargobike AS300 specifications, pictures, reviews and rating |
| Cargobike's profilation of this bike |
| Compared to a big top case where the load is carried above the rear wheel, Cargobike centers the load by positioning it between the two wheels, which allows to lower the center of gravity of the load, making for better balance and handling . |
| General information | |
|---|---|
| Model | Cargobike AS300 |
| Model year | 2011 |
| Category | Allround |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Displacement | 300.0 ccm (18.31 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Valves per cylinder | 2 |
| Fuel system | Injection |
| Fuel control | Overhead Cams (OHC) |
| Ignition | Electronic inductive discharge ignition with variable advance. |
| Cooling system | Liquid |
| Gearbox | Automatic |
| Transmission type | Belt (final drive) |
| Clutch | Automatic centrifugal dry clutch. Automatic torque converter gearbox. |
| Emission details | Euro 3 |
| Chassis, suspension, brakes and wheels | |
| Frame type | Double tube single cradle frame in high tensile strength steel |
| Front suspension | Hydraulic telescopic fork with 35 mm stanchions |
| Front wheel travel | 100 mm (3.9 inches) |
| Rear suspension | Engine unit acting as swinging arm. Double hydraulic shock absorber with 4 preload settings. |
| Rear wheel travel | 80 mm (3.1 inches) |
| Front tire | 120/70-15 |
| Rear tire | 130/80-15 |
| Front brakes | Double disc. Stainless steel discs with twin piston floating caliper |
| Diameter | 260 mm (10.2 inches) |
| Rear brakes | Single disc. Stainless steel disc with twin opposed piston calliper |
| Diameter | 220 mm (8.7 inches) |
| Wheels | Light alloy 2.75 x 15 inch front. Light alloy 3.00 x 15 inch rear. |
| Physical measures and capacities | |
| Dry weight | 166.0 kg (366.0 pounds) |
| Seat height | 820 mm (32.3 inches) If adjustable, lowest setting. |
| Overall length | 1985 mm (78.1 inches) |
| Overall width | 880 mm (34.6 inches) |
| Wheelbase | 1360 mm (53.5 inches) |
| Fuel capacity | 9.00 litres (2.38 US gallons) |
| Reserve fuel capacity | 1.50 litres (0.40 US gallons) |
| Other specifications | |
| Color options | Light grey, grey, black |
| Starter | Electric |
| Carrying capacity | Cargo bike with a loading volume of 150 liter and 80 kg. |
| Comments | Modified Aprilia Scooter. |
