| Cargobike's profilation of this bike |

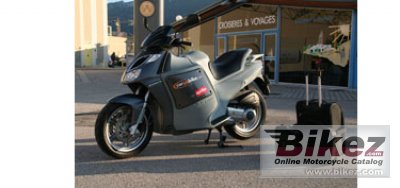

| The Cargobike is a scooter with a storage compartment built into its structure that allows the load to be centered between the two wheels, lowering the center of gravity and thus optimizing balance and handling |
|
General information |
|
Motorcycle name
|
Cargobike AS250 |
|
Model year
|
2009 |
|
Category
|
Scooter |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
250.0 ccm (15.26 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Power output
|
22.1 HP (16.1 kW)) @ 8000 RPM |
|
Torque
|
21.0 Nm (2.1 kgf-m or 15.5 ft.lbs) @ 6250 RPM |
|
Compression
|
11.0:1 |
|
Bore x stroke
|
72.0 x 60.0 mm (2.8 x 2.4 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection |
|
Fuel control
|
Overhead Cams (OHC) |
|
Ignition
|
Electronic inductive discharge ignition with variable advance. |
|
Cooling system
|
Liquid |
|
Gearbox
|
Automatic |
|
Clutch
|
Automatic centrifugal dry clutch |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Double tube single cradle frame in high tensile strength steel |
|
Front suspension
|
Hydraulic telescopic fork with 35 mm stanchions |
|
Front wheel travel
|
100 mm (3.9 inches) |
|
Rear suspension
|
Engine unit acting as swinging arm. Double hydraulic shock absorber with 4 preload settings. |
|
Rear wheel travel
|
80 mm (3.1 inches) |
|
Front tire
|
120/70-15 |
|
Rear tire
|
130/80-15 |
|
Front brakes
|
Double disc |
|
Diameter
|
260 mm (10.2 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
166.0 kg (366.0 pounds) |
|
Power/weight ratio
|
0.1333 HP/kg |
|
Seat height
|
820 mm (32.3 inches) If adjustable, lowest setting. |
|
Overall length
|
1985 mm (78.1 inches) |
|
Overall width
|
880 mm (34.6 inches) |
|
Wheelbase
|
1360 mm (53.5 inches) |
|
Fuel capacity
|
9.00 litres (2.38 US gallons) |
|
Reserve fuel capacity
|
1.50 litres (0.40 US gallons) |
|
Other specifications |
|
Color options
|
Light grey, grey, black |
|
Starter
|
Electric |
|
Comments
|
Cargo bike with a loading volume of 150 liter and 80 kg. French made. |
