| General information |
|---|

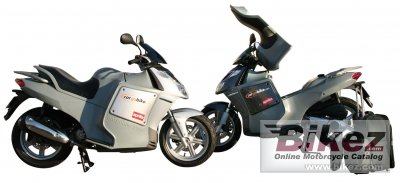

| Model | Cargobike AS125 |
| Year | 2011 |
| Category | Allround |
| Rating | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Displacement | 125.0 ccm (7.63 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Power | 14.8 HP (10.8 kW)) @ 9500 RPM |
| Torque | 11.0 Nm (1.1 kgf-m or 8.1 ft.lbs) @ 8250 RPM |
| Compression | 12.5:1 |
| Bore x stroke | 57.0 x 48.6 mm (2.2 x 1.9 inches) |
| Valves per cylinder | 4 |
| Fuel system | Carburettor |
| Fuel control | Overhead Cams (OHC) |
| Ignition | CDI with automatic advance |
| Cooling system | Liquid |
| Gearbox | Automatic |
| Transmission type | Belt (final drive) |
| Clutch | Automatic centrifugal dry clutch. Automatic torque converter gearbox |
| Emission details | Euro 3 |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type | Double tube single cradle frame in high tensile strength steel |
| Front suspension | Hydraulic telescopic fork with 35 mm stanchions |
| Front wheel travel | 100 mm (3.9 inches) |
| Rear suspension | Engine unit acting as swinging arm. Double hydraulic shock absorber with 4 preload settings. |
| Rear wheel travel | 80 mm (3.1 inches) |
| Front tire | 120/70-15 |
| Rear tire | 130/80-15 |
| Front brakes | Single disc. Twin piston floating calipers |
| Diameter | 260 mm (10.2 inches) |
| Rear brakes | Single disc. Twin piston opposed calipers |
| Diameter | 220 mm (8.7 inches) |
| Wheels | Light alloy wheels |
| Physical measures and capacities |
|---|
| Dry weight | 148.0 kg (326.3 pounds) |
| Power/weight ratio | 0.0997 HP/kg |
| Seat height | 820 mm (32.3 inches) If adjustable, lowest setting. |
| Overall length | 1985 mm (78.1 inches) |
| Overall width | 880 mm (34.6 inches) |
| Wheelbase | 1360 mm (53.5 inches) |
| Fuel capacity | 9.00 litres (2.38 US gallons) |
| Reserve fuel capacity | 1.50 litres (0.40 US gallons) |
| Other specifications |
|---|
| Color options | Excalibur gray, Shot gray, Moka black |
| Starter | Electric |
| Carrying capacity | 150 liter storage compartment. Up to 80 kg. |
| Comments | French made modification of an Aprilia scooter. |
