| Cargobike's profilation of this bike |
| The Cargobike is a scooter with a storage compartment built into its structure that allows the load to be centered between the two wheels, lowering the center of gravity and thus optimizing balance and handling. |
| General information |
|---|

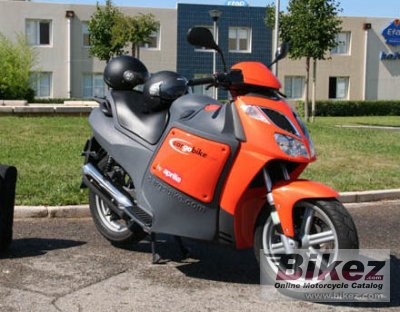

| Model: | Cargobike AS125 |
| Year: | 2010 |
| Category: | Allround |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 125.00 ccm (7.63 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Power: | 14.75 HP (10.8 kW)) @ 9500 RPM |
| Torque: | 11.00 Nm (1.1 kgf-m or 8.1 ft.lbs) @ 8250 RPM |
| Compression: | 12.5:1 |
| Bore x stroke: | 57.0 x 48.6 mm (2.2 x 1.9 inches) |
| Valves per cylinder: | 2 |
| Fuel system: | Carburettor |
| Fuel control: | Overhead Cams (OHC) |
| Ignition: | Electronic CDI with automatic advance |
| Cooling system: | Liquid |
| Gearbox: | Automatic |
Transmission type,
final drive: | Belt |
| Clutch: | Automatic torque converter gearbox |
| Exhaust system: | Euro 3 |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Double tube single cradle frame in high tensile strength steel |
| Front suspension: | Hydraulic telescopic fork with 35 mm stanchions |
| Front wheel travel: | 100 mm (3.9 inches) |
| Rear suspension: | Engine unit acting as swinging arm. Double hydraulic shock absorber with 4 preload settings. |
| Rear wheel travel: | 80 mm (3.1 inches) |
| Front tyre: | 120/70-15 |
| Rear tyre: | 130/80-15 |
| Front brakes: | Single disc. Twin piston floating calipers |
| Front brakes diameter: | 260 mm (10.2 inches) |
| Rear brakes: | Single disc. Twin piston opposed calipers |
| Rear brakes diameter: | 220 mm (8.7 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 148.0 kg (326.3 pounds) |
| Power/weight ratio: | 0.0997 HP/kg |
| Seat height: | 820 mm (32.3 inches) If adjustable, lowest setting. |
| Overall length: | 1,985 mm (78.1 inches) |
| Overall width: | 880 mm (34.6 inches) |
| Fuel capacity: | 9.00 litres (2.38 gallons) |
| Reserve fuel capacity: | 1.50 litres (0.40 gallons) |
| Other specifications |
|---|
| Color options: | Excalibur gray, Shot gray, Moka black |
| Starter: | Electric |
| Comments: | Cargo bike with a loading volume of 150 liter and 80 kg. French made modification of an Aprilia scooter. |
