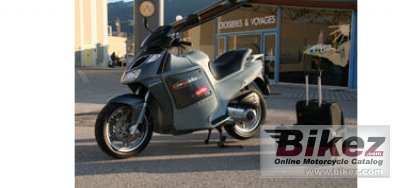

Cargobike AS125 20092009 Cargobike AS125 specifications, pictures, reviews and rating |
| Cargobike's profilation of this bike |
| It is particularly aimed for use by, craftsmen, self employed professionals, small and medium sized businesses and of course large companies. |
| General information | |
|---|---|
| Model name | Cargobike AS125 |
| Year of manufacture | 2009 |
| Type | Scooter |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Engine size | 125.0 ccm (7.63 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Output | 14.8 HP (10.8 kW)) @ 9500 RPM |
| Torque | 11.0 Nm (1.1 kgf-m or 8.1 ft.lbs) @ 8250 RPM |
| Compression | 12.5:1 |
| Bore x stroke | 57.0 x 48.6 mm (2.2 x 1.9 inches) |
| Valves per cylinder | 2 |
| Fuel system | Carburettor |
| Fuel control | Overhead Cams (OHC) |
| Ignition | Electronic CDI with automatic advance |
| Cooling system | Liquid |
| Gearbox | Automatic |
| Clutch | Automatic centrifugal dry clutch |
| Chassis, suspension, brakes and wheels | |
| Frame type | Double tube single cradle frame in high tensile strength steel |
| Front suspension | Hydraulic telescopic fork with 35 mm stanchions |
| Rear suspension | Engine unit acting as swinging arm. Double hydraulic shock absorber with 4 preload settings. |
| Front tire | 120/70-15 |
| Rear tire | 130/80-15 |
| Front brakes | Single disc |
| Diameter | 260 mm (10.2 inches) |
| Rear brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Dry weight | 148.0 kg (326.3 pounds) |
| Power/weight ratio | 0.0997 HP/kg |
| Seat height | 820 mm (32.3 inches) If adjustable, lowest setting. |
| Overall length | 1985 mm (78.1 inches) |
| Overall width | 880 mm (34.6 inches) |
| Fuel capacity | 9.00 litres (2.38 US gallons) |
| Reserve fuel capacity | 1.50 litres (0.40 US gallons) |
| Other specifications | |
| Color options | Grey, black, silver |
| Starter | Electric |
| Comments | Cargo bike with a loading volume of 150 liter and 80 kg. French modification of an Aprilia SportCity scooter. |
