| Can-Am's profilation of this bike |
| Spyder is built around a
Surrounding Spar Technology
(SST™) frame, featuring a
minimalist steel center beam,
surrounding the engine.
It minimizes weld points for
greater structural integrity. |
|
General information |
|

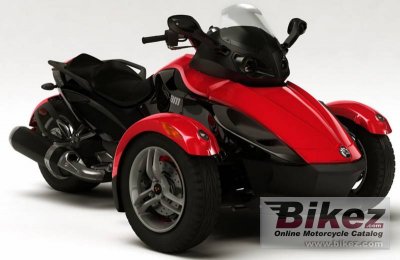

Model
|
Can-Am Spyder Roadster SM5 |
|
Year
|
2009 |
|
Category
|
Sport |
| Price as new | US$ 16199. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.6 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
998.0 ccm (60.90 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Power
|
106.0 HP (77.4 kW)) @ 8500 RPM |
|
Torque
|
104.3 Nm (10.6 kgf-m or 76.9 ft.lbs) @ 6250 RPM |
|
Compression
|
10.8:1 |
|
Bore x stroke
|
97.0 x 68.0 mm (3.8 x 2.7 inches) |
|
Fuel system
|
Injection. Multi-point EFI with 57 mm diameter throttle bodies |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Electronic ignition with dual output coil |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Wet, multi-plate |
|
Exhaust system
|
2-into-1 with catalytic converter |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Independent double A-arm |
|
Front wheel travel
|
145 mm (5.7 inches) |
|
Rear suspension
|
Swing Arm with monoshock |
|
Rear wheel travel
|
145 mm (5.7 inches) |
|
Front tire
|
165/65-R14 |
|
Rear tire
|
225/50-R15 |
|
Front brakes
|
Double disc. EBD, ABS |
|
Diameter
|
260 mm (10.2 inches) |
|
Rear brakes
|
Single disc. EBD, ABS |
|
Diameter
|
260 mm (10.2 inches) |
|
Physical measures and capacities |
|
Dry weight
|
316.2 kg (697.0 pounds) |
|
Power/weight ratio
|
0.3353 HP/kg |
|
Seat height
|
737 mm (29.0 inches) If adjustable, lowest setting. |
|
Overall height
|
1146 mm (45.1 inches) |
|
Overall length
|
2667 mm (105.0 inches) |
|
Overall width
|
1506 mm (59.3 inches) |
|
Ground clearance
|
114 mm (4.5 inches) |
|
Wheelbase
|
1727 mm (68.0 inches) |
|
Fuel capacity
|
25.00 litres (6.61 US gallons) |
|
Oil capacity
|
4.50 litres (4.76 US quarts) |
|
Other specifications |
|
Color options
|
Full moon, millenium yellow, red |
|
Starter
|
Electric |
|
Comments
|
Three wheel motorcycle. |
