| Can-Am's profilation of this bike |
| We decided to add a few more features to a quad that was already loaded with them. This year, the Outlander™ MAX 800R LTD comes newly equipped with Air Control Suspension (ACS), the industry’s first suspension system that lets riders customize their ride on the fly. Plus, new additions like dual-mode Dynamic Power Steering (DPS™), cast-aluminum wheels, a Garmin nüvi and #8734; 500 touchscreen GPS and quick-engaging Visco-Lok QE. |
|
General information |
|
Model
|

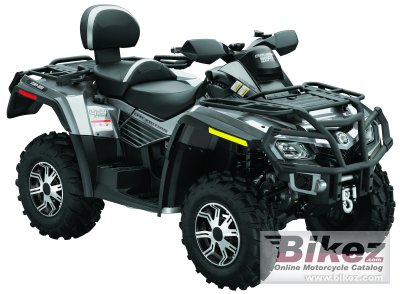

Can-Am Outlander Max 800 EFI LTD |
|
Year of manufacture
|
2010 |
|
Type
|
ATV |
| Price as new | US$ 13499. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.7 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Engine size
|
799.9 ccm (48.81 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Output
|
71.0 HP (51.8 kW)) |
|
Bore x stroke
|
91.0 x 62.0 mm (3.6 x 2.4 inches) |
|
Fuel system
|
Injection. 46-mm Throttle Body, 2 Siemens VDO injectors |
|
Cooling system
|
Liquid |
|
Transmission type
|
Belt (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
SST |
|
Front suspension
|
Double A-arm, |
|
Front wheel travel
|
203 mm (8.0 inches) |
|
Rear suspension
|
TTI independent |
|
Rear wheel travel
|
229 mm (9.0 inches) |
|
Front tire
|
26/8-12 |
|
Rear tire
|
26/10-12 |
|
Front brakes
|
Double disc |
|
Rear brakes
|
Single disc |
|
Physical measures and capacities |
|
Dry weight
|
326.0 kg (718.7 pounds) |
|
Power/weight ratio
|
0.2178 HP/kg |
|
Seat height
|
877 mm (34.5 inches) If adjustable, lowest setting. |
|
Overall length
|
2387 mm (94.0 inches) |
|
Ground clearance
|
305 mm (12.0 inches) |
|
Wheelbase
|
1499 mm (59.0 inches) |
|
Fuel capacity
|
16.28 litres (4.30 US gallons) |
|
Oil capacity
|
4.50 litres (4.76 US quarts) |
|
Other specifications |
|
Color options
|
Radiant Red Metallic, Steel Grey Metallic |
|
Starter
|
Electric |
|
Comments
|
CVT, sub-transmission w/high, low, park, neutral and reverse, Standard Engine braking. Selectable 2w/4w shaft driven w/Visco-lok front differential. |
