General information |
Model name
|

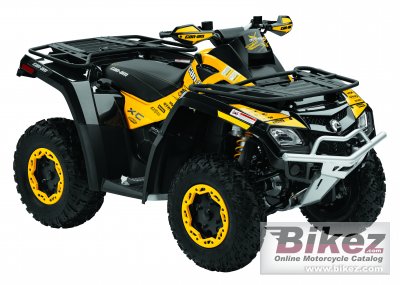

Can-Am Outlander 800R X XC |
Year
|
2011 |
Category
|
ATV |
Price as new | US$ 12449. MSRP depends on country, taxes, accessories, etc. |
Rating
|
3.7 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
Engine and transmission |
Displacement
|
799.9 ccm (48.81 cubic inches) |
Engine type
|
V2, four-stroke |
Bore x stroke
|
91.0 x 62.0 mm (3.6 x 2.4 inches) |
Fuel system
|
Injection. 46-mm Throttle Body, 2 Siemens VDO injectors |
Fuel control
|
Single Overhead Cams (SOHC) |
Ignition
|
650-watt magneto |
Cooling system
|
Liquid |
Driveline
|
CVT, sub-transmission with high, low, park, neutral and reverse. Standard engine braking. Selectable 2w/4w shaft driven with Visco-lok front differential. |
Chassis, suspension, brakes and wheels |
Front suspension
|
KYB HPG aluminum piggyback shocks with dual-speed compression, rebound and threaded preload adjustments |
Rear suspension
|
KYB HPG remote reservoir shocks with dual-speed compression, rebound and threaded preload adjustments |
Front tire
|
26/8-12 |
Rear tire
|
26/10-12 |
Front brakes
|
Double disc. Hydraulic |
Rear brakes
|
Single disc. Hydraulic |
Wheels
|
Cast-aluminum |
Physical measures and capacities |
Dry weight
|
302.0 kg (665.8 pounds) |
Seat height
|
876 mm (34.5 inches) If adjustable, lowest setting. |
Overall height
|
1143 mm (45.0 inches) |
Overall length
|
2184 mm (86.0 inches) |
Overall width
|
1168 mm (46.0 inches) |
Ground clearance
|
305 mm (12.0 inches) |
Wheelbase
|
1295 mm (51.0 inches) |
Fuel capacity
|
16.28 litres (4.30 US gallons) |
Oil capacity
|
4.50 litres (4.76 US quarts) |
Other specifications |
Color options
|
Black/yellow |
Instruments
|
Multi-function digital LCD gauge: Speedometer, tachometer (bar graph RPM, bottom bar numerical RPM), odometer, trip and hour meters, diagnostic center, gear position, engine hour meter, 4x4 indicator, temperature and engine lights, fuel gauge, clock, auto shut off after 15 minutes |
Light
|
2 fender mounted headlamps (35W) with tail light / brake light |
Carrying capacity
|
Front: rack 100 lb (45 kg) Rear rack: 200 lb (90 kg). Rear storage 5.3 US gal (20 L). |
Factory warranty
|
6 months limited factory warranty |
Comments
|
Dual-mode Dynamic Power Steering (DPS). Aluminum pre-runner front bumper. Aluminum skid plate. Aluminum taper-profile handlebar with wind deflectors. Prewired for winch. |
