| Can-Am's profilation of this bike |
| If you want an 800cc utility quad that can handle some work, but is also really fun to rip through the tight trails, then the nod has to go to the Can-Am Outlander 800. |
|
General information |
|
Model name
|

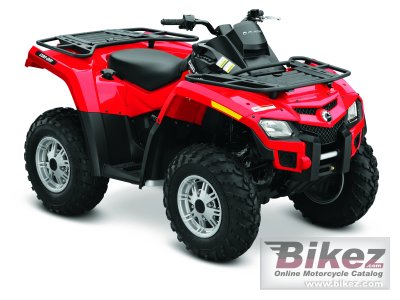

Can-Am Outlander 800R |
|
Year of manufacture
|
2011 |
|
Type
|
ATV |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
799.9 ccm (48.81 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Bore x stroke
|
91.0 x 62.0 mm (3.6 x 2.4 inches) |
|
Fuel system
|
Injection. 46-mm Throttle Body, 2 Siemens∞ VDO injectors |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Cooling system
|
Liquid |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Driveline
|
Selectable 2w/4w shaft driven with Visco-lokal front differential |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Double A-arm |
|
Front wheel travel
|
203 mm (8.0 inches) |
|
Rear suspension
|
TTI independent |
|
Rear wheel travel
|
229 mm (9.0 inches) |
|
Front tire
|
26/8-12 |
|
Rear tire
|
26/10-12 |
|
Front brakes
|
Single disc. Hydraulic |
|
Rear brakes
|
Single disc. Hydraulic |
|
Wheels
|
Cast-aluminum |
|
Physical measures and capacities |
|
Dry weight
|
303.0 kg (668.0 pounds) |
|
Seat height
|
876 mm (34.5 inches) If adjustable, lowest setting. |
|
Overall height
|
1143 mm (45.0 inches) |
|
Overall length
|
2184 mm (86.0 inches) |
|
Overall width
|
1168 mm (46.0 inches) |
|
Ground clearance
|
305 mm (12.0 inches) |
|
Wheelbase
|
1295 mm (51.0 inches) |
|
Fuel capacity
|
16.28 litres (4.30 US gallons) |
|
Oil capacity
|
4.50 litres (4.76 US quarts) |
|
Other specifications |
|
Color options
|
Viper Red |
|
Starter
|
Electric |
|
Instruments
|
Multi-function digital LCD gauge: Speedometer, tachometer (bar graph RPM, bottom bar numerical RPM), odometer, trip and hour meters, diagnostic center, gear position, engine hour meter, 4x4 indicator, temperature and engine lights, fuel gauge, clock, auto shut off after 15 minutes |
|
Light
|
2 fender mounted headlamps (35W) with tail light / brake light |
