| Can-Am's profilation of this bike |
| Featuring new cast-aluminum wheels for less unsprung weight, more mass centralization and better handling. Along with a redesigned fascia for more airflow to the radiator. In other words, it’s time to stop reading and start riding. |
|
General information |
|
Model name
|

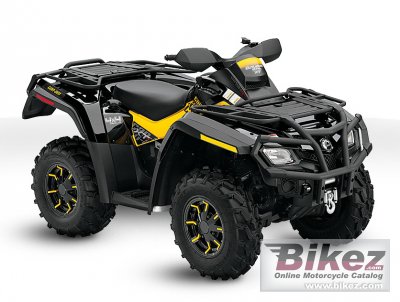

Can-Am Outlander 500 EFI XT-P |
|
Year model
|
2010 |
|
Type
|
ATV |
| Price as new | US$ 9799. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Engine size
|
499.6 ccm (30.49 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Bore x stroke
|
82.0 x 47.0 mm (3.2 x 1.9 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. 2 x Siemens injectors |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Cooling system
|
Liquid |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
SST |
|
Front suspension
|
McPherson |
|
Front wheel travel
|
176 mm (6.9 inches) |
|
Rear suspension
|
TTI independent |
|
Rear wheel travel
|
229 mm (9.0 inches) |
|
Front tire
|
25/8-12 |
|
Rear tire
|
25/10-12 |
|
Front brakes
|
Single disc. Hydraulic |
|
Rear brakes
|
Single disc. Hydraulic |
|
Physical measures and capacities |
|
Dry weight
|
297.0 kg (654.8 pounds) |
|
Seat height
|
877 mm (34.5 inches) If adjustable, lowest setting. |
|
Overall height
|
1168 mm (46.0 inches) |
|
Overall length
|
2184 mm (86.0 inches) |
|
Wheelbase
|
1285 mm (50.6 inches) |
|
Fuel capacity
|
16.30 litres (4.31 US gallons) |
|
Other specifications |
|
Color options
|
Black/yellow |
|
Comments
|
CVT, sub-transmission w/high, low, park, neutral and reverse, standard Engine braking. Selectable 2w/4w shaft driven w/Visco-lok† front differential. BRP XL3000 winch. Aggressive Carlisle ACT radial tires. Digitally Encoded Security System. |
|
Modifications compared to previous model
|
New dual-mode Dynamic Power Steering (DPS). |
