| Can-Am's profilation of this bike |
| Your kids will love not having to shift gears or get off the vehicle to go into reverse, thanks to the CVT transmission with forward/neutral/reverse. They´ll also appreciate the smooth ride with better bump absorption from the long travel suspension. Best of all, so will you. |
| General information |
|---|

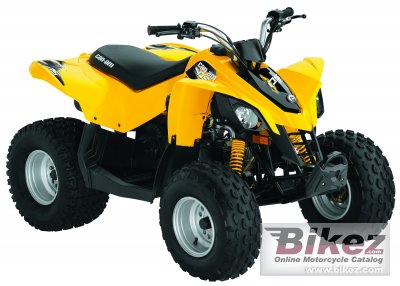

| Model: | Can-Am DS 90 |
| Year: | 2010 |
| Category: | ATV |
| Price as new: | US$ 2499. MSRP depends on country, taxes, accessories, etc. |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 89.5 ccm (5.46 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Bore x stroke: | 49.5 x 48.0 mm (1.9 x 1.9 inches) |
| Valves per cylinder: | 2 |
| Fuel system: | Carburettor. Keihin |
| Fuel control: | Single Overhead Cams (SOHC) |
| Cooling system: | Air |
| Gearbox: | Automatic |
Transmission type,
final drive: | Belt |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | DS90 |
| Front suspension: | Independant A-arm |
| Rear suspension: | Swingarm |
| Front tyre: | 19/7-8 |
| Rear tyre: | 18/10-8 |
| Front brakes: | Expanding brake (drum brake). Double drum |
| Rear brakes: | Expanding brake (drum brake) |
| Physical measures and capacities |
|---|
| Dry weight: | 111.1 kg (245.0 pounds) |
| Seat height: | 685 mm (27.0 inches) If adjustable, lowest setting. |
| Overall length: | 1520 mm (59.8 inches) |
| Overall width: | 905 mm (35.6 inches) |
| Ground clearance: | 211 mm (8.3 inches) |
| Fuel capacity: | 6.05 litres (1.60 gallons) |
| Other specifications |
|---|
| Color options: | Yellow, black |
| Starter: | Electric & kick |
| Comments: | Automatic CVT, forward, neutral and reverse. |
