| Can-Am's profilation of this bike |
| Recommended for riders 6 years and older. |
| General information |
|---|

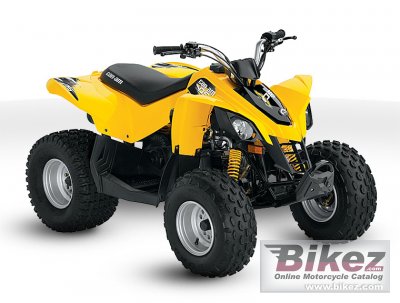

| Model: | Can-Am DS 70 |
| Year: | 2010 |
| Category: | ATV |
| Price as new: | US$ 1999. MSRP depend on country, taxes, accessories, etc. |
| Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 69.0 ccm (4.21 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Bore x stroke: | 47.0 x 40.0 mm (1.9 x 1.6 inches) |
| Fuel system: | Carburettor |
| Fuel control: | Single Overhead Cams (SOHC) |
| Cooling system: | Air |
| Gearbox: | Automatic |
Transmission type,
final drive: | Belt |
| Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | Independent A-arm |
| Front wheel travel: | 86 mm (3.4 inches) |
| Rear suspension: | Swingarm |
| Rear wheel travel: | 160 mm (6.3 inches) |
| Front tyre: | 19/7-8 |
| Rear tyre: | 18/10-8 |
| Front brakes: | Expanding brake (drum brake). Double drum |
| Rear brakes: | Expanding brake (drum brake) |
| Physical measures and capacities |
|---|
| Dry weight: | 111.0 kg (244.7 pounds) |
| Seat height: | 685 mm (27.0 inches) If adjustable, lowest setting. |
| Overall height: | 935 mm (36.8 inches) |
| Overall length: | 1520 mm (59.8 inches) |
| Overall width: | 905 mm (35.6 inches) |
| Ground clearance: | 211 mm (8.3 inches) |
| Wheelbase: | 1000 mm (39.4 inches) |
| Fuel capacity: | 6.06 litres (1.60 gallons) |
| Other specifications |
|---|
| Color options: | Yellow, black |
| Starter: | Electric & kick |
| Further information |
|---|
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Finance options | Compare US motorcycle loan quotes from the nation's top providers. |
| Parts finder |
Chaparral provides online schematics & OEM parts for the US. Revzilla offers up to 50% off motorcycle accessories. Ships to most countries.
Also check out our overview of motorcycle webshops at Bikez.info. |
| ATV parts | Sixity.com sells ATV parts with free shipping to the US. |
| Ask questions | Join the 10 Can-Am DS 70 discussion group or the general Can-Am discussion group. |
| Related bikes | List related bikes for comparison of specs. |
|
|
