General information |
|
Motorcycle name
|

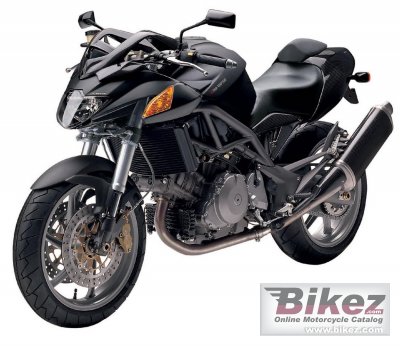

Cagiva Xtra Raptor 1000 |
|
Year model
|
2006 |
|
Type
|
Naked bike |
|
Rating
|
3.4 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Engine size
|
996.0 ccm (60.78 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Effect
|
105.5 HP (77.0 kW)) @ 8500 RPM |
|
Torque
|
90.3 Nm (9.2 kgf-m or 66.6 ft.lbs) @ 7000 RPM |
|
Bore x stroke
|
98.0 x 65.8 mm (3.9 x 2.6 inches) |
|
Fuel system
|
Carburettor. Mikuni BDSR 39 |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Electronic, |
|
Gearbox
|
6-speed |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Steel tubular frame |
|
Trail
|
102 mm (4.0 inches) |
|
Front suspension
|
Upside down telescopic hydraulic fork |
|
Front wheel travel
|
138 mm (5.4 inches) |
|
Rear suspension
|
Progressive, single shock absorber with adjustable spring preload |
|
Front brakes
|
Double disc. Bremo, 4-piston calipers |
|
Diameter
|
298 mm (11.7 inches) |
|
Rear brakes
|
Single disc. Bremo |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
191.9 kg (423.0 pounds) |
|
Power/weight ratio
|
0.5499 HP/kg |
|
Seat height
|
805 mm (31.7 inches) If adjustable, lowest setting. |
|
Ground clearance
|
175 mm (6.9 inches) |
|
Wheelbase
|
1431 mm (56.3 inches) |
|
Fuel capacity
|
15.20 litres (4.02 US gallons) |
|
Other specifications |
|
Color options
|
Bat Black |
|
Starter
|
Electric |
