General information |
|
Motorcycle name
|

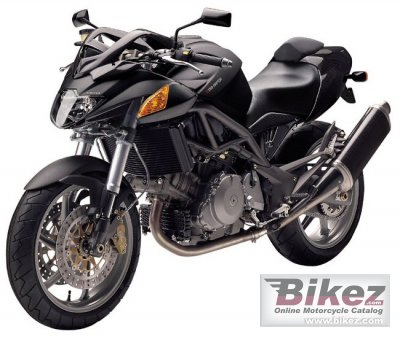

Cagiva Xtra Raptor 1000 |
|
Year of manufacture
|
2005 |
|
Type
|
Naked bike |
|
Rating
|
3.9 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Engine size
|
994.8 ccm (60.70 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Compression
|
11.3:1 |
|
Bore x stroke
|
97.8 x 65.8 mm (3.9 x 2.6 inches) |
|
Ignition
|
Electronic |
|
Cooling system
|
Liquid |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
High strength steel tubular frame |
|
Trail
|
102 mm (4.0 inches) |
|
Front suspension
|
Upside down telscopic hydraulic fork |
|
Front wheel travel
|
138 mm (5.4 inches) |
|
Rear suspension
|
Progressive, single shock absorber with adjustable spring preload |
|
Front brakes
|
Single disc |
|
Diameter
|
298 mm (11.7 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
298 mm (11.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
192.0 kg (423.3 pounds) |
|
Seat height
|
805 mm (31.7 inches) If adjustable, lowest setting. |
|
Overall height
|
1090 mm (42.9 inches) |
|
Overall length
|
2104 mm (82.8 inches) |
|
Overall width
|
800 mm (31.5 inches) |
|
Ground clearance
|
175 mm (6.9 inches) |
|
Wheelbase
|
1432 mm (56.4 inches) |
|
Fuel capacity
|
15.17 litres (4.01 US gallons) |
|
Other specifications |
|
Color options
|
Bat black |
|
Starter
|
Electric |
