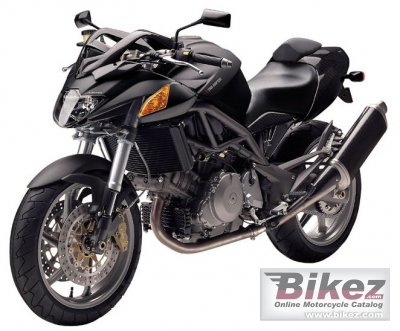

Cagiva Xtra-Raptor 1000 20042004 Cagiva Xtra-Raptor 1000 specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Model | Cagiva Xtra-Raptor 1000 |
| Year of manufacture | 2004 |
| Type | Naked bike |
| Rating | 3.8 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
| Engine and transmission | |
| Engine size | 996.0 ccm (60.78 cubic inches) |
| Type of engine | Twin, four-stroke |
| Output | 105.5 HP (77.0 kW)) @ 8500 RPM |
| Torque | 90.3 Nm (9.2 kgf-m or 66.6 ft.lbs) @ 7000 RPM |
| Compression | 11.3:1 |
| Bore x stroke | 98.0 x 66.0 mm (3.9 x 2.6 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Frame type | High strength steel tubular frame |
| Front suspension | Upside Down fully adjustable hydraulic fork |
| Front wheel travel | 120 mm (4.7 inches) |
| Rear suspension | Progressive, single shock absorber with adjustable spring preload |
| Rear wheel travel | 138 mm (5.4 inches) |
| Front tire | 120/70-17 |
| Rear tire | 180/55-17 |
| Front brakes | Double disc |
| Diameter | 298 mm (11.7 inches) |
| Rear brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Dry weight | 192.0 kg (423.3 pounds) |
| Power/weight ratio | 0.5495 HP/kg |
| Seat height | 805 mm (31.7 inches) If adjustable, lowest setting. |
| Ground clearance | 175 mm (6.9 inches) |
| Fuel capacity | 15.20 litres (4.02 US gallons) |
| Other specifications | |
| Color options | Black |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 04 Cagiva Xtra-Raptor 1000 discussion group or the general Cagiva discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Buying a bike starts at Bikez
Get a list of related motorbikes before you buy this Cagiva. Inspect technical data. Look at photos. Read the riders' comments at the bike's discussion group. And check out the bike's reliability, repair costs, etc. Show any 2004 Cagiva Xtra-Raptor 1000 for sale on our Bikez.biz Motorcycle Classifieds. You can also sign up for e-mail notification when such bikes are advertised in the future. And advertise your old MC for sale. Our efficient ads are free. You are also welcome to read and submit motorcycle reviews.| Rating sample for this Cagiva bike | |
Design and look for the 2004 Cagiva Xtra-Raptor 1000:  (77.4 out of 100)Click here for complete rating. |
|
