General information |
|
Motorcycle name
|

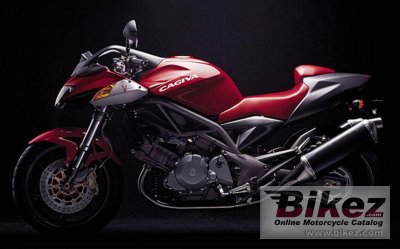

Cagiva V Raptor 1000 |
|
Year
|
2006 |
|
Category
|
Naked bike |
|
Rating
|
3.1 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Displacement
|
996.0 ccm (60.78 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Power
|
105.5 HP (77.0 kW)) @ 8500 RPM |
|
Torque
|
90.3 Nm (9.2 kgf-m or 66.6 ft.lbs) @ 7000 RPM |
|
Compression
|
11.3:1 |
|
Bore x stroke
|
98.0 x 65.8 mm (3.9 x 2.6 inches) |
|
Fuel system
|
Injection |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Electronic, transistorized |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
High strength steel tubular frame |
|
Trail
|
102 mm (4.0 inches) |
|
Front suspension
|
Upside down telscopic hydraulic fork |
|
Front wheel travel
|
138 mm (5.4 inches) |
|
Rear suspension
|
Progressive, single shock absorber with adjustable spring preload |
|
Front brakes
|
Double disc. Bremo, 4-piston calipers |
|
Diameter
|
298 mm (11.7 inches) |
|
Rear brakes
|
Single disc. Bremo |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
197.0 kg (434.3 pounds) |
|
Power/weight ratio
|
0.5355 HP/kg |
|
Seat height
|
805 mm (31.7 inches) If adjustable, lowest setting. |
|
Overall height
|
1070 mm (42.1 inches) |
|
Overall length
|
2104 mm (82.8 inches) |
|
Overall width
|
820 mm (32.3 inches) |
|
Ground clearance
|
175 mm (6.9 inches) |
|
Wheelbase
|
1431 mm (56.3 inches) |
|
Fuel capacity
|
15.20 litres (4.02 US gallons) |
|
Other specifications |
|
Color options
|
Argento Cosmic, Rosso Cagiva |
|
Starter
|
Electric |
