General information |
|
Motorcycle name
|

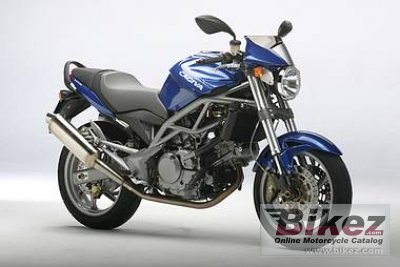

Cagiva Raptor 650 |
|
Year of manufacture
|
2008 |
|
Type
|
Naked bike |
|
Rating
|
3.6 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Engine size
|
645.0 ccm (39.36 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Output
|
73.8 HP (53.8 kW)) @ 9000 RPM |
|
Torque
|
63.5 Nm (6.5 kgf-m or 46.8 ft.lbs) @ 7000 RPM |
|
Top speed
|
200.0 km/h (124.3 mph) |
|
Compression
|
11.5:1 |
|
Bore x stroke
|
81.0 x 62.2 mm (3.2 x 2.5 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet, multiplate type; mechanic control. |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
High strength steel tubular frame |
|
Front suspension
|
Upside down telescopic hydraulic fork |
|
Front wheel travel
|
120 mm (4.7 inches) |
|
Rear suspension
|
Progressive shock absorber with adjustable spring preload |
|
Front brakes
|
Double disc |
|
Diameter
|
298 mm (11.7 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
180.0 kg (396.8 pounds) |
|
Power/weight ratio
|
0.4097 HP/kg |
|
Seat height
|
775 mm (30.5 inches) If adjustable, lowest setting. |
|
Overall length
|
2110 mm (83.1 inches) |
|
Ground clearance
|
165 mm (6.5 inches) |
|
Wheelbase
|
1438 mm (56.6 inches) |
|
Fuel capacity
|
17.50 litres (4.62 US gallons) |
|
Other specifications |
|
Color options
|
Red, black, blue |
|
Starter
|
Electric |
