General information |
|
Model name
|

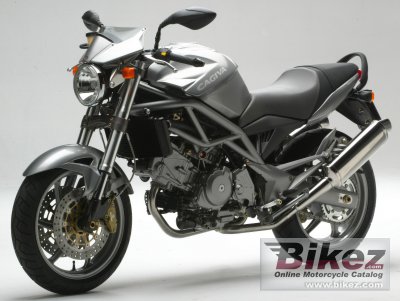

Cagiva Raptor 650 |
|
Year of manufacture
|
2005 |
|
Type
|
Naked bike |
|
Rating
|
3.1 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Engine size
|
644.1 ccm (39.30 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Compression
|
11.5:1 |
|
Bore x stroke
|
81.0 x 62.5 mm (3.2 x 2.5 inches) |
|
Ignition
|
Electronic |
|
Cooling system
|
Liquid |
|
Chassis, suspension, brakes and wheels |
|
Trail
|
120 mm (4.7 inches) |
|
Front suspension
|
Upside down telscopic hydraulic fork |
|
Front wheel travel
|
138 mm (5.4 inches) |
|
Rear suspension
|
Progressive |
|
Rear wheel travel
|
140 mm (5.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
180.0 kg (396.8 pounds) |
|
Seat height
|
800 mm (31.5 inches) If adjustable, lowest setting. |
|
Overall width
|
800 mm (31.5 inches) |
|
Ground clearance
|
165 mm (6.5 inches) |
|
Wheelbase
|
1438 mm (56.6 inches) |
|
Fuel capacity
|
19.30 litres (5.10 US gallons) |
|
Other specifications |
|
Color options
|
Red, black, Marine, Yellow |
