| Cagiva's profilation of this bike |
| The Raptor 125 is characterized by a highly sophisticated frame boasting technical solutions inherited from its big sisters. One example is seen in its rear suspension, equipped with progressive linkage with a Sachs shock absorber featuring spring pre-loading adjustment. |
|
General information |
|
Model name
|

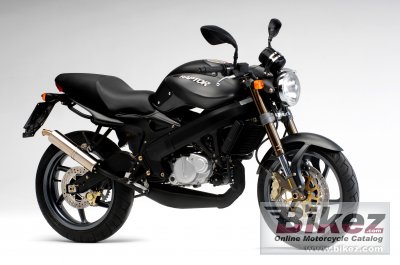

Cagiva Raptor 125 |
|
Year
|
2011 |
|
Category
|
Naked bike |
| Price as new | Euro 4500. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.0 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Displacement
|
124.6 ccm (7.60 cubic inches) |
|
Engine type
|
Single cylinder, two-stroke |
|
Power
|
14.8 HP (10.8 kW)) @ 9000 RPM |
|
Torque
|
14.0 Nm (1.4 kgf-m or 10.3 ft.lbs) @ 8250 RPM |
|
Top speed
|
120.0 km/h (74.6 mph) |
|
Compression
|
7.4:1 |
|
Bore x stroke
|
56.0 x 50.6 mm (2.2 x 2.0 inches) |
|
Fuel system
|
Carburettor. Dell’Orto´ VHST 28 |
|
Ignition
|
C.D.I |
|
Lubrication system
|
Automatic mixer |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet, multiplate |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Aluminium Profi frame |
|
Trail
|
96 mm (3.8 inches) |
|
Front suspension
|
Upside down telescopic hydraulic fork |
|
Front wheel travel
|
120 mm (4.7 inches) |
|
Rear suspension
|
Sachs progressive with hydraulic shock absorbers |
|
Rear wheel travel
|
140 mm (5.5 inches) |
|
Front tire
|
110/70-ZR17 |
|
Rear tire
|
150/60-ZR17 |
|
Front brakes
|
Single disc |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
230 mm (9.1 inches) |
|
Physical measures and capacities |
|
Dry weight
|
125.0 kg (275.6 pounds) |
|
Power/weight ratio
|
0.1180 HP/kg |
|
Seat height
|
800 mm (31.5 inches) If adjustable, lowest setting. |
|
Overall height
|
1040 mm (40.9 inches) |
|
Overall length
|
1979 mm (77.9 inches) |
|
Ground clearance
|
175 mm (6.9 inches) |
|
Wheelbase
|
1374 mm (54.1 inches) |
|
Fuel capacity
|
12.50 litres (3.30 US gallons) |
|
Oil capacity
|
0.80 litres (0.85 US quarts) |
|
Other specifications |
|
Color options
|
Red, black |
|
Starter
|
Electric |
|
Electrical
|
12 V - 9 Ah battery. |
|
Factory warranty
|
24 months |
