| Cagiva's profilation of this bike |
| An evolution from the stylistical and technical base of the planet, the new 125 Raptor owes its name to the introduction of design concepts derived from its bigger sisters, like the front headlamp, the new redesigned passenger seat, and the V-Raptor´s handlebars. |
|
General information |
|
Model name
|

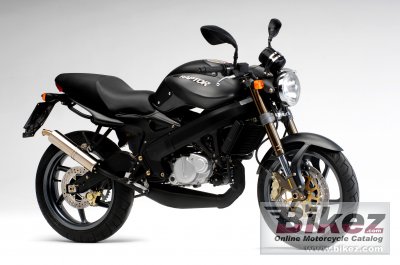

Cagiva Raptor 125 |
|
Year of manufacture
|
2010 |
|
Type
|
Naked bike |
|
Rating
|
3.4 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Engine size
|
124.6 ccm (7.60 cubic inches) |
|
Type of engine
|
Single cylinder, two-stroke |
|
Output
|
11.0 HP (8.0 kW)) |
|
Torque
|
14.0 Nm (1.4 kgf-m or 10.3 ft.lbs) |
|
Top speed
|
120.0 km/h (74.6 mph) |
|
Compression
|
7.4:1 |
|
Bore x stroke
|
56.0 x 50.6 mm (2.2 x 2.0 inches) |
|
Fuel system
|
Carburettor. Dell’Orto´ VHST 28 |
|
Ignition
|
C.D.I |
|
Lubrication system
|
Automatic mixer |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet, multiplate |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Aluminium |
|
Trail
|
96 mm (3.8 inches) |
|
Front suspension
|
Upside down telescopic hydraulic fork |
|
Front wheel travel
|
120 mm (4.7 inches) |
|
Rear suspension
|
Sachs progressive with hydraulic shock absorbers |
|
Rear wheel travel
|
140 mm (5.5 inches) |
|
Front tire
|
110/70-ZR17 |
|
Rear tire
|
150/60-ZR17 |
|
Front brakes
|
Single disc. Bremo |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc. Bremo |
|
Diameter
|
230 mm (9.1 inches) |
|
Physical measures and capacities |
|
Dry weight
|
125.0 kg (275.6 pounds) |
|
Power/weight ratio
|
0.0880 HP/kg |
|
Seat height
|
800 mm (31.5 inches) If adjustable, lowest setting. |
|
Overall height
|
1040 mm (40.9 inches) |
|
Overall length
|
1979 mm (77.9 inches) |
|
Ground clearance
|
175 mm (6.9 inches) |
|
Wheelbase
|
1374 mm (54.1 inches) |
|
Fuel capacity
|
12.50 litres (3.30 US gallons) |
|
Oil capacity
|
0.80 litres (0.85 US quarts) |
|
Other specifications |
|
Color options
|
Red, black |
|
Starter
|
Electric |
