General information |
|
Model name
|

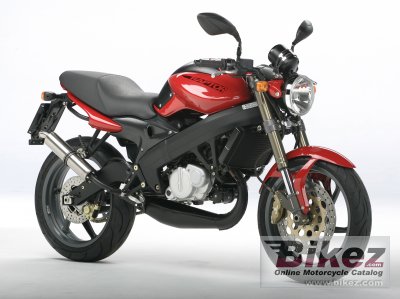

Cagiva Raptor 125 |
|
Year
|
2007 |
|
Category
|
Naked bike |
|
Rating
|
3.4 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Displacement
|
124.6 ccm (7.60 cubic inches) |
|
Engine type
|
Single cylinder, two-stroke |
|
Compression
|
7.4:1 |
|
Bore x stroke
|
56.0 x 50.6 mm (2.2 x 2.0 inches) |
|
Fuel system
|
Carburettor. Dell’Orto´ PHBH 28 BD |
|
Ignition
|
CDI |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet, multiplate type; mechanic control |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Aluminium |
|
Front suspension
|
Upside down telescopic hydraulic fork |
|
Front wheel travel
|
120 mm (4.7 inches) |
|
Rear suspension
|
Sachs progressive with hydraulic shock absorbers |
|
Front brakes
|
Single disc |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
230 mm (9.1 inches) |
|
Physical measures and capacities |
|
Dry weight
|
125.0 kg (275.6 pounds) |
|
Seat height
|
775 mm (30.5 inches) If adjustable, lowest setting. |
|
Overall length
|
1979 mm (77.9 inches) |
|
Wheelbase
|
1374 mm (54.1 inches) |
|
Other specifications |
|
Color options
|
Red/black, Grey/black |
|
Starter
|
Electric |
| Update specs | Report missing specs or required updates. |
|
Further information |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder |
Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 07 Cagiva Raptor 125 discussion group or the general Cagiva discussion group. |
| Related bikes | List related bikes for comparison of specs. |
|
|
|
Rating sample for this Cagiva bike
|
Offroad capabilities for the 2007 Cagiva Raptor 125:
 (43.0 out of 100)
Click here for complete rating. You can also compare bikes.
|
|
