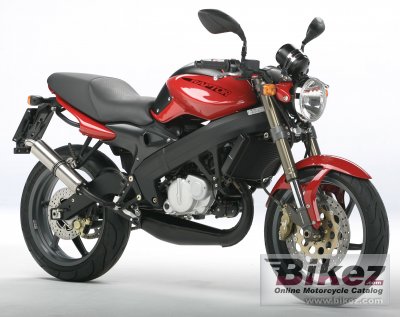

Cagiva Raptor 125 20062006 Cagiva Raptor 125 specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Model name | Cagiva Raptor 125 |
| Year | 2006 |
| Category | Naked bike |
| Rating | 3.6 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
| Engine and transmission | |
| Displacement | 124.6 ccm (7.60 cubic inches) |
| Engine type | Single cylinder, two-stroke |
| Power | 14.1 HP (10.3 kW)) @ 9000 RPM |
| Torque | 11.5 Nm (1.2 kgf-m or 8.5 ft.lbs) @ 7000 RPM |
| Top speed | 124.0 km/h (77.1 mph) |
| Compression | 11.5:1 |
| Bore x stroke | 56.0 x 50.6 mm (2.2 x 2.0 inches) |
| Fuel system | Carburettor |
| Ignition | CDI |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Chassis, suspension, brakes and wheels | |
| Frame type | Aluminium |
| Front suspension | Upside down telescopic hydraulic fork |
| Front wheel travel | 120 mm (4.7 inches) |
| Rear suspension | Sachs progressive hydraulic shock absorber |
| Rear wheel travel | 140 mm (5.5 inches) |
| Front tire | 110/70-ZR17 |
| Rear tire | 150/60-ZR17 |
| Front brakes | Single disc |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc |
| Diameter | 230 mm (9.1 inches) |
| Physical measures and capacities | |
| Dry weight | 127.0 kg (280.0 pounds) |
| Weight incl. oil, gas, etc | 135.0 kg (297.6 pounds) |
| Power/weight ratio | 0.1109 HP/kg |
| Seat height | 800 mm (31.5 inches) If adjustable, lowest setting. |
| Overall length | 2020 mm (79.5 inches) |
| Ground clearance | 175 mm (6.9 inches) |
| Wheelbase | 1385 mm (54.5 inches) |
| Fuel capacity | 12.50 litres (3.30 US gallons) |
| Other specifications | |
| Color options | Rosso Cagiva, Bat Black |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
