Cagiva Raptor 125 20042004 Cagiva Raptor 125 specifications, pictures, reviews and rating |

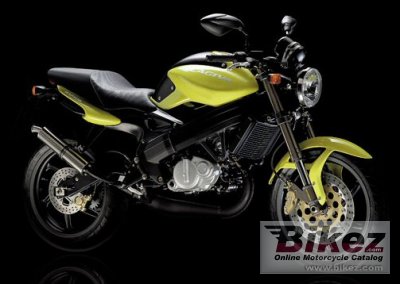

2004 Cagiva Raptor 125. Image credits - Cagiva.
| General information | |
|---|---|
| Model name | Cagiva Raptor 125 |
| Year of manufacture | 2004 |
| Type | Naked bike |
| Rating | 4.0 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
| Engine and transmission | |
| Engine size | 124.6 ccm (7.60 cubic inches) |
| Type of engine | Single cylinder, two-stroke |
| Output | 14.1 HP (10.3 kW)) @ 9000 RPM |
| Torque | 11.5 Nm (1.2 kgf-m or 8.5 ft.lbs) @ 7000 RPM |
| Top speed | 124.0 km/h (77.1 mph) |
| Compression | 7.4:1 |
| Bore x stroke | 56.0 x 50.6 mm (2.2 x 2.0 inches) |
| Fuel system | Carburettor |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Frame type | Aluminium double extruded beam with cast head pipe and rear plates |
| Front suspension | Marzocchi upside-down hydraulic fork |
| Front wheel travel | 120 mm (4.7 inches) |
| Rear suspension | Sachs progressive hydraulic shock absorber |
| Rear wheel travel | 140 mm (5.5 inches) |
| Front tire | 110/70-ZR17 |
| Rear tire | 150/60-ZR17 |
| Front brakes | Single disc |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc |
| Diameter | 230 mm (9.1 inches) |
| Physical measures and capacities | |
| Dry weight | 127.0 kg (280.0 pounds) |
| Weight incl. oil, gas, etc | 135.0 kg (297.6 pounds) |
| Power/weight ratio | 0.1109 HP/kg |
| Seat height | 800 mm (31.5 inches) If adjustable, lowest setting. |
| Ground clearance | 175 mm (6.9 inches) |
| Fuel capacity | 12.50 litres (3.30 US gallons) |
| Other specifications | |
| Color options | Red, Black |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 04 Cagiva Raptor 125 discussion group or the general Cagiva discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
