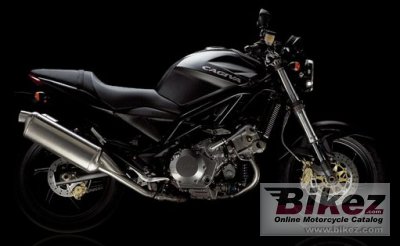

Cagiva Raptor 1000 20042004 Cagiva Raptor 1000 specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Motorcycle name | Cagiva Raptor 1000 |
| Year | 2004 |
| Category | Naked bike |
| Rating | 3.5 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
| Engine and transmission | |
| Displacement | 996.0 ccm (60.78 cubic inches) |
| Engine type | Twin, four-stroke |
| Power | 105.5 HP (77.0 kW)) @ 8500 RPM |
| Torque | 90.3 Nm (9.2 kgf-m or 66.6 ft.lbs) @ 7000 RPM |
| Compression | 11.3:1 |
| Bore x stroke | 98.0 x 66.0 mm (3.9 x 2.6 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Frame type | High strength steel tubular frame |
| Front suspension | Upside Down telescopic hydraulic fork |
| Front wheel travel | 120 mm (4.7 inches) |
| Rear suspension | Progressive, single shock absorber with adjustable spring preload |
| Rear wheel travel | 138 mm (5.4 inches) |
| Front tire | 120/70-17 |
| Rear tire | 180/55-17 |
| Front brakes | Double disc |
| Diameter | 298 mm (11.7 inches) |
| Rear brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Dry weight | 210.0 kg (463.0 pounds) |
| Power/weight ratio | 0.5024 HP/kg |
| Seat height | 805 mm (31.7 inches) If adjustable, lowest setting. |
| Ground clearance | 175 mm (6.9 inches) |
| Fuel capacity | 15.20 litres (4.02 US gallons) |
| Other specifications | |
| Color options | Red, black, silver |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 04 Cagiva Raptor 1000 discussion group or the general Cagiva discussion group. |
| Related bikes | List related bikes for comparison of specs. |
