General information |
|
Model name
|

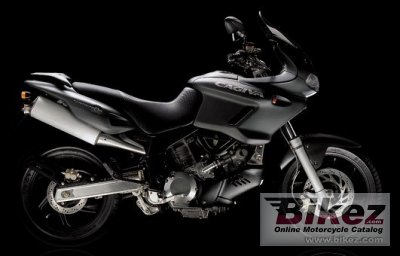

Cagiva Navigator 1000 |
|
Year model
|
2004 |
|
Type
|
Enduro / offroad |
|
Rating
|
3.6 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
996.0 ccm (60.78 cubic inches) |
|
Type of engine
|
Twin, four-stroke |
|
Effect
|
97.0 HP (70.8 kW)) @ 8400 RPM |
|
Torque
|
88.0 Nm (9.0 kgf-m or 64.9 ft.lbs) @ 7000 RPM |
|
Compression
|
11.3:1 |
|
Bore x stroke
|
98.0 x 66.0 mm (3.9 x 2.6 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
High strength steel tubes trellis type |
|
Front suspension
|
Telescopic hydraulic fork with advanced axle |
|
Front wheel travel
|
150 mm (5.9 inches) |
|
Rear suspension
|
Marzocchi progressive type with single hydraulic shock absorber; spring preload and rebound adjustment |
|
Rear wheel travel
|
160 mm (6.3 inches) |
|
Front tire
|
110/90-19 |
|
Rear tire
|
140/80-17 |
|
Front brakes
|
Double disc |
|
Diameter
|
296 mm (11.7 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Physical measures and capacities |
|
Dry weight
|
210.0 kg (463.0 pounds) |
|
Power/weight ratio
|
0.4619 HP/kg |
|
Seat height
|
850 mm (33.5 inches) If adjustable, lowest setting. |
|
Ground clearance
|
150 mm (5.9 inches) |
|
Fuel capacity
|
20.06 litres (5.30 US gallons) |
|
Other specifications |
|
Color options
|
Red, blue, black |
