Cagiva Mito SP525 20122012 Cagiva Mito SP525 specifications, pictures, reviews and rating |

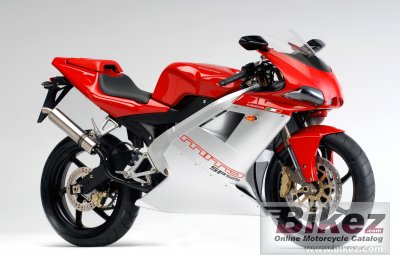

2012 Cagiva Mito SP525. Image credits - Cagiva.
| Cagiva's profilation of this bike |
| Gripping the Mito´s semi-handlebars puts the rider in touch with a true racing thoroughbred. A sensation confirmed by the many details inherited from its more than a decade of experience in the world of racing. |
| General information | |
|---|---|
| Model name | Cagiva Mito SP525 |
| Year of manufacture | 2012 |
| Type | Sport |
| Rating | 3.4 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 124.6 ccm (7.60 cubic inches) |
| Type of engine | Single cylinder, two-stroke |
| Output | 12.1 HP (8.8 kW)) @ 9000 RPM |
| Torque | 11.0 Nm (1.1 kgf-m or 8.1 ft.lbs) @ 7500 RPM |
| Bore x stroke | 56.0 x 50.6 mm (2.2 x 2.0 inches) |
| Fuel system | Carburettor. Dell Ortho |
| Ignition | C.D.I. with variable spark advance |
| Lubrication system | Automatic mixer |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Multiplate in oil bath |
| Chassis, suspension, brakes and wheels | |
| Frame type | Aluminium Profi frame |
| Rake (fork angle) | 25.0° |
| Trail | 98 mm (3.9 inches) |
| Front suspension | Upside-down Marzocchi forks. |
| Rear suspension | Adjustable preload shock absorber. |
| Front tire | 110/70-ZR17 |
| Rear tire | 150/60-ZR17 |
| Front brakes | Single disc. 4-piston |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc. 2-piston |
| Diameter | 230 mm (9.1 inches) |
| Wheels | 6-spoke black wheels |
| Physical measures and capacities | |
| Dry weight | 129.0 kg (284.4 pounds) |
| Power/weight ratio | 0.0936 HP/kg |
| Seat height | 760 mm (29.9 inches) If adjustable, lowest setting. |
| Overall length | 1980 mm (78.0 inches) |
| Ground clearance | 150 mm (5.9 inches) |
| Wheelbase | 1375 mm (54.1 inches) |
| Fuel capacity | 14.00 litres (3.70 US gallons) |
| Oil capacity | 0.80 litres (0.85 US quarts) |
| Other specifications | |
| Color options | Red, white, red/gray, black |
| Starter | Electric |
| Instruments | Analogue |
| Electrical | 12 V |
| Comments | Cagiva says the SP525 have the 1 of “125” replaced by a 5 in memory of the Cagiva 500. Italian brand. |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 12 Cagiva Mito SP525 discussion group or the general Cagiva discussion group. |
| Related bikes | List related bikes for comparison of specs. |
