| Cagiva's profilation of this bike |
| Nowadays the Mito is “conservative” both in principle and design. It offers the sheer pleasure of riding a two-stroke, of hearing it scream through the gears like the glorious Cagiva 500, even if it has three cylinders less. |
|
General information |
|
Model
|

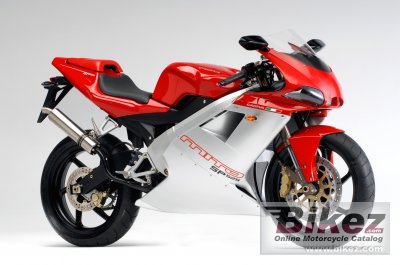

Cagiva Mito SP525 |
|
Year model
|
2011 |
|
Type
|
Sport |
|
Rating
|
2.5 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
124.6 ccm (7.60 cubic inches) |
|
Type of engine
|
Single cylinder, two-stroke |
|
Effect
|
12.1 HP (8.8 kW)) @ 9000 RPM |
|
Torque
|
11.0 Nm (1.1 kgf-m or 8.1 ft.lbs) @ 7500 RPM |
|
Bore x stroke
|
56.0 x 50.6 mm (2.2 x 2.0 inches) |
|
Fuel system
|
Carburettor. Dell Ortho |
|
Ignition
|
C.D.I. with variable spark advance |
|
Lubrication system
|
Automatic mixer |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Multiplate in oil bath |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Aluminium Profi frame |
|
Rake (fork angle)
|
25.0° |
|
Trail
|
98 mm (3.9 inches) |
|
Front suspension
|
Upside-down Marzocchi forks. |
|
Rear suspension
|
Adjustable rebound and damping shock absorber. |
|
Front tire
|
110/70-ZR17 |
|
Rear tire
|
150/60-ZR17 |
|
Front brakes
|
Double disc. 4-piston |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc. 2-piston |
|
Diameter
|
230 mm (9.1 inches) |
|
Physical measures and capacities |
|
Dry weight
|
129.0 kg (284.4 pounds) |
|
Power/weight ratio
|
0.0936 HP/kg |
|
Seat height
|
760 mm (29.9 inches) If adjustable, lowest setting. |
|
Overall height
|
1070 mm (42.1 inches) |
|
Overall length
|
1980 mm (78.0 inches) |
|
Ground clearance
|
150 mm (5.9 inches) |
|
Wheelbase
|
1375 mm (54.1 inches) |
|
Fuel capacity
|
14.00 litres (3.70 US gallons) |
|
Oil capacity
|
0.80 litres (0.85 US quarts) |
|
Other specifications |
|
Color options
|
Red, white, red/grey, black |
|
Starter
|
Electric |
|
Comments
|
Cagiva says the SP525 have the 1 of “125” replaced by a 5 in memory of the Cagiva 500. |
