General information |
|
Model
|

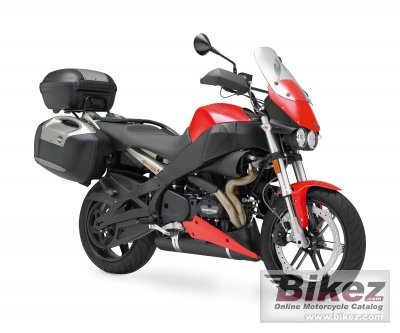

Buell XB12XT Ulysses |
|
Year
|
2010 |
|
Category
|
Sport touring |
| Price as new | US$ 12999. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.4 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
|
Engine and transmission |
|
Displacement
|
1202.9 ccm (73.40 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Power
|
103.0 HP (75.2 kW)) @ 6800 RPM |
|
Torque
|
113.9 Nm (11.6 kgf-m or 84.0 ft.lbs) @ 6000 RPM |
|
Compression
|
10.0:1 |
|
Bore x stroke
|
88.9 x 96.8 mm (3.5 x 3.8 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection. 49 mm down draft DDFI 3 injection |
|
Fuel control
|
Overhead Valves (OHV) |
|
Cooling system
|
Oil & air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Wet, multi-plate, compensated |
|
Exhaust system
|
Tuned, tri-pass resonance chamber with InterActive valve and mass-centralised mounting |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Aluminium frame with Uniplanar powertrain vibration isolation system, fuel in frame |
|
Rake (fork angle)
|
23.8° |
|
Trail
|
124 mm (4.9 inches) |
|
Front suspension
|
43 mm Showa inverted forks, fully adjustable (compression damping, rebound damping, and spring preload) |
|
Front wheel travel
|
125 mm (4.9 inches) |
|
Rear suspension
|
Showa coil-over monoshock with remote reservoir and remote spring preload adjustment, fully adjustable (compression damping, rebound damping, and spring preload) |
|
Rear wheel travel
|
125 mm (4.9 inches) |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
180/55-ZR17 |
|
Front brakes
|
Single disc. ZTL™ brake, 6-piston, fixed caliper; 375 mm single-sided, inside-out, stainless steel, floating rotor |
|
Diameter
|
375 mm (14.8 inches) |
|
Rear brakes
|
Single disc. Two-piston, direct mount caliper; stainless steel, fixed rotor |
|
Diameter
|
240 mm (9.4 inches) |
|
Physical measures and capacities |
|
Dry weight
|
211.0 kg (465.2 pounds) |
|
Power/weight ratio
|
0.4882 HP/kg |
|
Seat height
|
836 mm (32.9 inches) If adjustable, lowest setting. |
|
Overall length
|
2319 mm (91.3 inches) |
|
Overall width
|
1006 mm (39.6 inches) |
|
Ground clearance
|
151 mm (5.9 inches) |
|
Wheelbase
|
1369 mm (53.9 inches) |
|
Fuel capacity
|
16.60 litres (4.39 US gallons) |
|
Oil capacity
|
2.40 litres (2.54 US quarts) |
|
Other specifications |
|
Color options
|
Racing Red, Villain Black |
|
Starter
|
Electric |
|
Comments
|
Electronic speedometer, tachometer, odometer; dual tripmeter; high beam, neutral, oil, low fuel (plus, odometer shows miles traveled on reserve), turn signal and engine diagnostic indicator lamps; clock |
