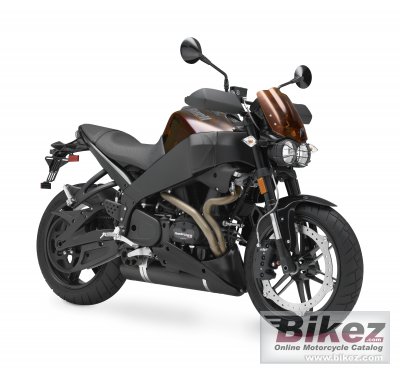

Buell XB12SX Lightning City X 20102010 Buell XB12SX Lightning City X specifications, pictures, reviews and rating |
| Buell's profilation of this bike |
| For those looking for a bike with agile handling, as well as serious torque and acceleration for real urban power, MY10 sees the introduction of the new Lightning® CityX XB12SX. Receiving its debut in Europe, the XB12SX marries the sheer power of the Thunderstorm™ 1203cc V-Twin engine with Buell’s popular Lightning CityX XB9SX chassis and suspension, inspired by the needs of today’s urban rider. |
| General information | |
|---|---|
| Model name | Buell XB12SX Lightning City X |
| Year model | 2010 |
| Type | Naked bike |
| Rating | 3.4 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
| Engine and transmission | |
| Engine size | 1202.9 ccm (73.40 cubic inches) |
| Type of engine | V2, four-stroke |
| Effect | 92.5 HP (67.5 kW)) @ 7000 RPM |
| Torque | 104.0 Nm (10.6 kgf-m or 76.7 ft.lbs) @ 5500 RPM |
| Compression | 10.0:1 |
| Bore x stroke | 88.9 x 96.8 mm (3.5 x 3.8 inches) |
| Valves per cylinder | 2 |
| Fuel system | Injection. 49 mm down draft DDFI II fuel injection |
| Fuel control | Overhead Valves (OHV) |
| Cooling system | Oil & air |
| Gearbox | 5-speed |
| Transmission type | Belt (final drive) |
| Clutch | Wet, multi-plate, compensated |
| Exhaust system | Tuned, tri-pass resonance chamber with InterActive valve and mass-centralised mounting |
| Chassis, suspension, brakes and wheels | |
| Frame type | Black aluminium frame with Uniplanar™ powertrain vibration isolation system, fuel in frame |
| Rake (fork angle) | 21.0° |
| Trail | 84 mm (3.3 inches) |
| Front suspension | 41 mm Showa inverted forks with adjustable compression damping, rebound damping and spring preload |
| Front wheel travel | 79 mm (3.1 inches) |
| Rear suspension | Showa coil-over monoshock with remote, under-seat reservoir and adjustable compression damping, rebound damping and spring preload |
| Rear wheel travel | 90 mm (3.6 inches) |
| Front tire | 120/70-ZR17 |
| Rear tire | 180/55-ZR17 |
| Front brakes | Single disc. ZTL2-type brake, 8-piston, 4 pads, fixed caliper, 375 mm single-sided, inside out, stainless steel, floating rotor |
| Diameter | 375 mm (14.8 inches) |
| Rear brakes | Single disc. Two-piston, direct mount caliper; stainless steel, fixed rotor |
| Diameter | 240 mm (9.4 inches) |
| Physical measures and capacities | |
| Dry weight | 179.0 kg (394.6 pounds) |
| Power/weight ratio | 0.5169 HP/kg |
| Seat height | 726 mm (28.6 inches) If adjustable, lowest setting. |
| Overall length | 1985 mm (78.1 inches) |
| Overall width | 754 mm (29.7 inches) |
| Ground clearance | 110 mm (4.3 inches) |
| Wheelbase | 1320 mm (52.0 inches) |
| Fuel capacity | 14.45 litres (3.82 US gallons) |
| Reserve fuel capacity | 2.83 litres (0.75 US gallons) |
| Oil capacity | 2.40 litres (2.54 US quarts) |
| Other specifications | |
| Color options | Valencia Orange Translucent; Hero Blue Translucent |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 10 Buell XB12SX Lightning City X discussion group or the general Buell discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Discussions for every bike
Bikez has discussion forums for every bike. View comments, questions and answers at the 2010 Buell XB12SX Lightning City X discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes.| Rating sample for this Buell bike | |
Fun-factor for the 2010 Buell XB12SX Lightning City X:  (84.5 out of 100)Click here for complete rating. |
|
