| General information |
|---|

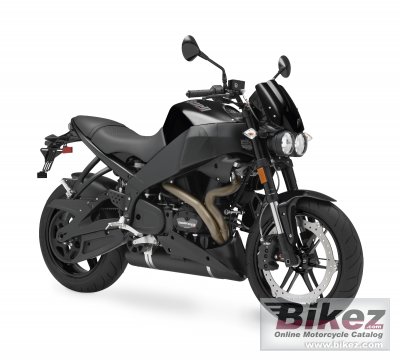

| Model | Buell XB12Ss Lightning Long |
| Year | 2010 |
| Category | Naked bike |
| Price as new | US$ 10299. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.2 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
| Engine and transmission |
|---|
| Displacement | 1202.9 ccm (73.40 cubic inches) |
| Engine type | V2, four-stroke |
| Power | 103.0 HP (75.2 kW)) @ 6800 RPM |
| Torque | 113.9 Nm (11.6 kgf-m or 84.0 ft.lbs) @ 5500 RPM |
| Compression | 10.0:1 |
| Bore x stroke | 88.9 x 96.8 mm (3.5 x 3.8 inches) |
| Valves per cylinder | 2 |
| Fuel system | Injection. 49 mm down draft DDFI 3 injection |
| Fuel control | Overhead Valves (OHV) |
| Cooling system | Oil & air |
| Gearbox | 5-speed |
| Transmission type | Belt (final drive) |
| Clutch | Wet, multi-plate, compensated |
| Exhaust system | Tuned, tri-pass resonance chamber with InterActive valve and mass-centralised mounting |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type | Black aluminium frame with Uniplanar powertrain vibration isolation system, fuel in frame |
| Rake (fork angle) | 23.1° |
| Trail | 119 mm (4.7 inches) |
| Front suspension | 43 mm Showa inverted forks with adjustable compression damping, rebound damping and spring preload |
| Front wheel travel | 143 mm (5.6 inches) |
| Rear suspension | Showa coil-over monoshock with remote, under-seat reservoir and adjustable compression damping, rebound damping and spring preload |
| Rear wheel travel | 143 mm (5.6 inches) |
| Front tire | 120/70-ZR17 |
| Rear tire | 180/55-ZR17 |
| Front brakes | Single disc. ZTL2-type brake, 8-piston, 4 pads, fixed caliper, 375 mm single-sided, inside out, stainless steel, floating rotor |
| Diameter | 375 mm (14.8 inches) |
| Rear brakes | Single disc. Two-piston, direct mount caliper; stainless steel, fixed rotor |
| Diameter | 240 mm (9.4 inches) |
| Physical measures and capacities |
|---|
| Dry weight | 181.0 kg (399.0 pounds) |
| Power/weight ratio | 0.5691 HP/kg |
| Seat height | 843 mm (33.2 inches) If adjustable, lowest setting. |
| Overall length | 2080 mm (81.9 inches) |
| Overall width | 754 mm (29.7 inches) |
| Ground clearance | 140 mm (5.5 inches) |
| Wheelbase | 1364 mm (53.7 inches) |
| Fuel capacity | 16.65 litres (4.40 US gallons) |
| Oil capacity | 2.40 litres (2.54 US quarts) |
| Other specifications |
|---|
| Color options | Villain Black, Kick Ash Translucid, Cherry Bomb Red Translucid |
| Starter | Electric |
| Modifications compared to previous model | Second oxygen sensor and updated EFI
calibration improves fuel economy and drivability. |
