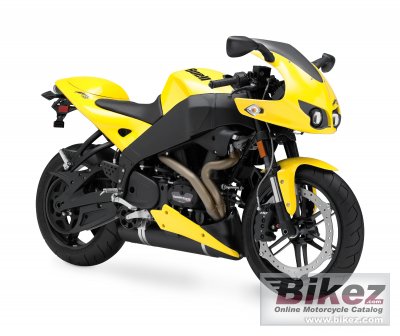

Buell XB12R Firebolt 20102010 Buell XB12R Firebolt specifications, pictures, reviews and rating |
| Buell's profilation of this bike |
| The innovative design of the Buell® Firebolt® XB12R breaks all sportbike convention. Its light weight, razor-sharp agility and torque-rich V-Twin powerplant make it a potent canyon carver that looks and feels like no other motorcycle on the road. |
| General information | |
|---|---|
| Model name | Buell XB12R Firebolt |
| Model year | 2010 |
| Category | Naked bike |
| Price as new | US$ 10299. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.1 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
| Engine and transmission | |
| Displacement | 1202.9 ccm (73.40 cubic inches) |
| Engine type | V2, four-stroke |
| Power output | 103.0 HP (75.2 kW)) @ 6800 RPM |
| Torque | 114.0 Nm (11.6 kgf-m or 84.1 ft.lbs) @ 6500 RPM |
| Compression | 10.0:1 |
| Bore x stroke | 88.9 x 96.8 mm (3.5 x 3.8 inches) |
| Valves per cylinder | 2 |
| Fuel system | Injection. 49 mm down draft DDFI 3 fuel injection |
| Fuel control | Overhead Valves (OHV) |
| Cooling system | Oil & air |
| Gearbox | 5-speed |
| Transmission type | Belt (final drive) |
| Clutch | Wet, multi-plate, compensated |
| Fuel consumption | 4.90 litres/100 km (20.4 km/l or 48.00 mpg) |
| Greenhouse gases | 113.7 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Exhaust system | Tuned, tri-pass resonance chamber with InterActive valve and mass-centralized mounting |
| Chassis, suspension, brakes and wheels | |
| Frame type | Aluminum frame with Uniplanar™ powertrain vibration isolation system, fuel in frame |
| Rake (fork angle) | 21.0° |
| Trail | 83 mm (3.3 inches) |
| Front suspension | 43 mm Showa inverted forks with adjustable compression damping, rebound damping and spring preload |
| Front wheel travel | 120 mm (4.7 inches) |
| Rear suspension | Showa coil-over monoshock with remote, under-seat reservoir and adjustable compression damping, rebound damping and spring preload |
| Rear wheel travel | 127 mm (5.0 inches) |
| Front tire | 120/70-ZR17 |
| Rear tire | 180/55-ZR17 |
| Front brakes | Single disc. ZTL2-type brake, 8-piston, 4 pads, fixed caliper, single-sided, inside out, stainless steel, floating rotor |
| Rear brakes | Single disc. Two-piston, direct mount caliper; stainless steel, fixed rotor |
| Diameter | 240 mm (9.4 inches) |
| Physical measures and capacities | |
| Seat height | 775 mm (30.5 inches) If adjustable, lowest setting. |
| Overall length | 1935 mm (76.2 inches) |
| Overall width | 714 mm (28.1 inches) |
| Ground clearance | 110 mm (4.4 inches) |
| Wheelbase | 1321 mm (52.0 inches) |
| Fuel capacity | 14.45 litres (3.82 US gallons) |
| Other specifications | |
| Color options | Midnight Black, Sunfire Yellow |
| Starter | Electric |
| Modifications compared to previous model | Second oxygen sensor and updated EFI calibration improves fuel economy and drivability |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 10 Buell XB12R Firebolt discussion group or the general Buell discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
