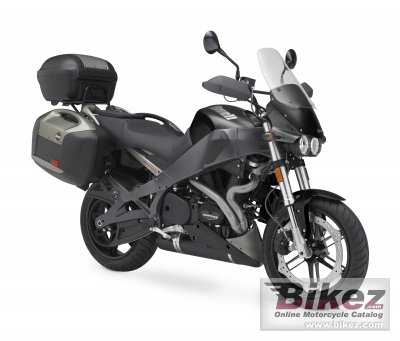

Buell Ulysses XB12XT 20092009 Buell Ulysses XB12XT specifications, pictures, reviews and rating |
| Buell's profilation of this bike |
| Ever go touring on a sportbike? Want to? This is the Buell Ulysses XB12XT, an adventure sport touring motorcycle designed for riders who refuse to accept the notion that comfort and practicality have to come with sacrifices. |
| General information | |
|---|---|
| Motorcycle name | Buell Ulysses XB12XT |
| Model year | 2009 |
| Category | Sport touring |
| Price as new | US$ 12995. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.8 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
| Engine and transmission | |
| Displacement | 1202.9 ccm (73.40 cubic inches) |
| Engine type | V2, four-stroke |
| Power output | 103.0 HP (75.2 kW)) @ 6800 RPM |
| Torque | 113.9 Nm (11.6 kgf-m or 84.0 ft.lbs) @ 6000 RPM |
| Compression | 10.0:1 |
| Bore x stroke | 88.9 x 96.8 mm (3.5 x 3.8 inches) |
| Valves per cylinder | 2 |
| Fuel system | Injection. 49 mm down draft DDFI III fuel injection |
| Fuel control | Overhead Valves (OHV) |
| Gearbox | 5-speed |
| Transmission type | Belt (final drive) |
| Clutch | Wet, multi-plate, compensated |
| Exhaust system | Tuned, tri-pass resonance chamber with InterActive valve and mass-centralised mounting |
| Chassis, suspension, brakes and wheels | |
| Frame type | Aluminium frame with Uniplanar™ powertrain vibration isolation system, fuel in frame |
| Rake (fork angle) | 23.8° |
| Front suspension | 43 mm Showa inverted forks, fully adjustable (compression damping, rebound damping, and spring preload) |
| Front wheel travel | 125 mm (4.9 inches) |
| Rear suspension | Showa coil-over monoshock with remote reservoir and remote spring preload adjustment, fully adjustable (compression damping, rebound damping, and spring preload) |
| Rear wheel travel | 125 mm (4.9 inches) |
| Front tire | 120/70-ZR17 |
| Rear tire | 180/55-ZR17 |
| Front brakes | Single disc. ZTL™ brake, 6-piston, fixed caliper; 375 mm single-sided, inside-out, stainless steel, floating rotor |
| Diameter | 375 mm (14.8 inches) |
| Rear brakes | Single disc. Two-piston, direct mount caliper; stainless steel, fixed rotor |
| Diameter | 240 mm (9.4 inches) |
| Physical measures and capacities | |
| Seat height | 780 mm (30.7 inches) If adjustable, lowest setting. |
| Overall length | 2319 mm (91.3 inches) |
| Overall width | 1006 mm (39.6 inches) |
| Ground clearance | 151 mm (5.9 inches) |
| Wheelbase | 1369 mm (53.9 inches) |
| Fuel capacity | 16.65 litres (4.40 US gallons) |
| Other specifications | |
| Color options | Racing Red; Thrust Blue; Midnight Black |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 09 Buell Ulysses XB12XT discussion group or the general Buell discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
