| Buell's profilation of this bike |
| Ulysses offers comfort, versatility and performance on the roads you know and the ones you have yet to discover. |
| General information |
|---|

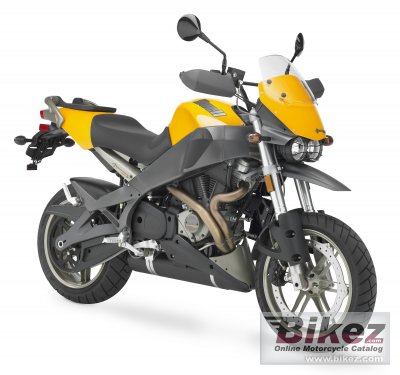

| Model | Buell Ulysses XB12X |
| Year | 2007 |
| Category | Naked bike |
| Rating | 4.0 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
| Engine and transmission |
|---|
| Displacement | 1202.9 ccm (73.40 cubic inches) |
| Engine type | V2, four-stroke |
| Power | 103.0 HP (75.2 kW)) @ 6800 RPM |
| Torque | 113.9 Nm (11.6 kgf-m or 84.0 ft.lbs) @ 6000 RPM |
| Compression | 10.0:1 |
| Valves per cylinder | 2 |
| Fuel system | Injection |
| Fuel control | Overhead Valves (OHV) |
| Lubrication system | Dry-sump |
| Cooling system | Oil & air |
| Gearbox | 5-speed |
| Transmission type | Belt (final drive) |
| Exhaust system | Tuned, tri-pass resonance chamber with InterActive valve and mass-centralized mounting |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type | Aluminum frame with Uniplanar™ powertrain vibration isolation system, fuel in frame |
| Rake (fork angle) | 23.5° |
| Trail | 122 mm (4.8 inches) |
| Front suspension | 43 mm Showa inverted forks with adjustable compression damping, rebound damping and spring preload |
| Front wheel travel | 165 mm (6.5 inches) |
| Rear suspension | Showa coil-over monoshock with remote, under-seat reservoir and adjustable compression damping, rebound damping and spring preload |
| Rear wheel travel | 162 mm (6.4 inches) |
| Front tire | 120/70-ZR17 |
| Rear tire | 180/55-ZR17 |
| Front brakes | Single disc |
| Rear brakes | Single disc |
| Physical measures and capacities |
|---|
| Dry weight | 192.8 kg (425.0 pounds) |
| Power/weight ratio | 0.5343 HP/kg |
| Overall length | 2159 mm (85.0 inches) |
| Overall width | 892 mm (35.1 inches) |
| Ground clearance | 171 mm (6.8 inches) |
| Wheelbase | 1374 mm (54.1 inches) |
| Fuel capacity | 16.65 litres (4.40 US gallons) |
| Other specifications |
|---|
| Color options | Barricade Orange w/Magnesium Tone wheels |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
| Further information |
|---|
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Finance options | Compare US motorcycle loan quotes from the nation's top providers. |
| Parts finder | Revzilla offers up to 50% off motorcycle accessories. Ships to most countries.
Also check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 07 Buell Ulysses XB12X discussion group or the general Buell discussion group. |
| Related bikes | List related bikes for comparison of specs. |
|
|
|
