General information |
|
Motorcycle name
|

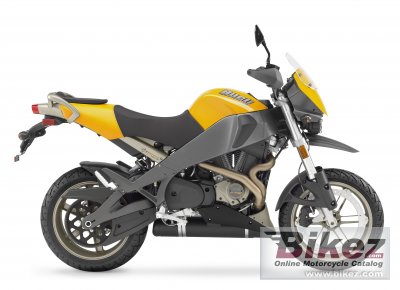

Buell Ulysses XB12X |
|
Year of manufacture
|
2006 |
|
Type
|
Enduro / offroad |
| Price as new | US$ 11495. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.8 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
1202.9 ccm (73.40 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Output
|
103.0 HP (75.2 kW)) @ 6800 RPM |
|
Torque
|
113.9 Nm (11.6 kgf-m or 84.0 ft.lbs) @ 6000 RPM |
|
Compression
|
10.0:1 |
|
Bore x stroke
|
88.9 x 96.8 mm (3.5 x 3.8 inches) |
|
Fuel system
|
Injection |
|
Cooling system
|
Oil & air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Wet, multiplate, compensated, reduced lever effort |
|
Fuel consumption
|
4.05 litres/100 km (24.7 km/l or 58.08 mpg) |
|
Greenhouse gases
|
94.0 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Exhaust system
|
InterActive exhaust, Mass centralized muffler with extended outlet - mounted under the bike |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Aluminum frame with Uniplanar™ Powertrain vibration isolation system |
|
Rake (fork angle)
|
22.0° |
|
Trail
|
122 mm (4.8 inches) |
|
Front suspension
|
Showa® inverted fork with adjustable compression damping, rebound damping and spring preload |
|
Front wheel travel
|
165 mm (6.5 inches) |
|
Rear suspension
|
Showa® Fully adjustable, coil-over monoshock with remote, underseat reservoir |
|
Rear wheel travel
|
162 mm (6.4 inches) |
|
Front tire
|
120/70-R17 |
|
Rear tire
|
180/55-R17 |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Single disc |
|
Physical measures and capacities |
|
Dry weight
|
192.8 kg (425.0 pounds) |
|
Power/weight ratio
|
0.5343 HP/kg |
|
Overall height
|
1331 mm (52.4 inches) |
|
Overall length
|
2159 mm (85.0 inches) |
|
Overall width
|
892 mm (35.1 inches) |
|
Ground clearance
|
171 mm (6.8 inches) |
|
Wheelbase
|
1374 mm (54.1 inches) |
|
Fuel capacity
|
16.65 litres (4.40 US gallons) |
|
Other specifications |
|
Color options
|
Midnight black, Barricade orange |
|
Starter
|
Electric |
|
Comments
|
Also available with carburator. |
