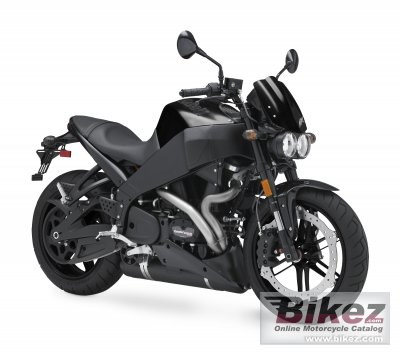

Buell Lightning XB12Scg 20092009 Buell Lightning XB12Scg specifications, pictures, reviews and rating |
| Buell's profilation of this bike |
| With a lower seat and lowered suspension, this bare-knuckled brawler takes the streetfighter mentality to a new low, while taking performance to new heights. With a low center of gravity and the raw, minimalist styling that separates the Lightning lineup from the pack – the Lightning XB12Scg puts you as close to the road as you’ll ever want to be. |
| General information | |
|---|---|
| Model | Buell Lightning XB12Scg |
| Model year | 2009 |
| Category | Naked bike |
| Price as new | US$ 9995. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.7 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
| Engine and transmission | |
| Displacement | 1202.9 ccm (73.40 cubic inches) |
| Engine type | V2, four-stroke |
| Power output | 103.0 HP (75.2 kW)) @ 6800 RPM |
| Torque | 113.9 Nm (11.6 kgf-m or 84.0 ft.lbs) @ 5500 RPM |
| Bore x stroke | 88.9 x 96.8 mm (3.5 x 3.8 inches) |
| Valves per cylinder | 2 |
| Fuel system | Injection. 49 mm down draft DDFI II fuel injection |
| Fuel control | Overhead Valves (OHV) |
| Cooling system | Oil & air |
| Gearbox | 5-speed |
| Transmission type | Belt (final drive) |
| Clutch | Wet, multi-plate, compensated |
| Exhaust system | Tuned, tri-pass resonance chamber with InterActive valve and mass-centralised mounting |
| Chassis, suspension, brakes and wheels | |
| Frame type | Black aluminium frame with Uniplanar™ powertrain vibration isolation system, fuel in frame |
| Rake (fork angle) | 21.0° |
| Front suspension | 41 mm Showa inverted forks with adjustable compression damping, rebound damping and spring preload |
| Front wheel travel | 79 mm (3.1 inches) |
| Rear suspension | Showa coil-over monoshock with remote, under-seat reservoir and adjustable compression damping, rebound damping and spring preload |
| Rear wheel travel | 90 mm (3.6 inches) |
| Front tire | 120/70-ZR17 |
| Rear tire | 180/55-ZR17 |
| Front brakes | Single disc. ZTL2-type brake, 8-piston, 4 pads, fixed caliper, 375 mm single-sided, inside out, stainless steel, floating rotor |
| Diameter | 375 mm (14.8 inches) |
| Rear brakes | Single disc. Two-piston, direct mount caliper; stainless steel, fixed rotor |
| Diameter | 240 mm (9.4 inches) |
| Physical measures and capacities | |
| Dry weight | 179.2 kg (395.0 pounds) |
| Power/weight ratio | 0.5749 HP/kg |
| Seat height | 726 mm (28.6 inches) If adjustable, lowest setting. |
| Overall length | 1923 mm (75.7 inches) |
| Overall width | 754 mm (29.7 inches) |
| Wheelbase | 1316 mm (51.8 inches) |
| Fuel capacity | 14.45 litres (3.82 US gallons) |
| Reserve fuel capacity | 2.83 litres (0.75 US gallons) |
| Other specifications | |
| Color options | Cherry Bomb translucid; Hero Blue translucid; Midnight Black |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 09 Buell Lightning XB12Scg discussion group or the general Buell discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Buying a bike starts at Bikez
Get a list of related motorbikes before you buy this Buell. Inspect technical data. Look at photos. Read the riders' comments at the bike's discussion group. And check out the bike's reliability, repair costs, etc. Show any 2009 Buell Lightning XB12Scg for sale on our Bikez.biz Motorcycle Classifieds. You can also sign up for e-mail notification when such bikes are advertised in the future. And advertise your old MC for sale. Our efficient ads are free. You are also welcome to read and submit motorcycle reviews.| Rating sample for this Buell bike | |
Reliability for the 2009 Buell Lightning XB12Scg:  (76.1 out of 100)Click here for complete rating. |
|
