General information |
|
Model name
|

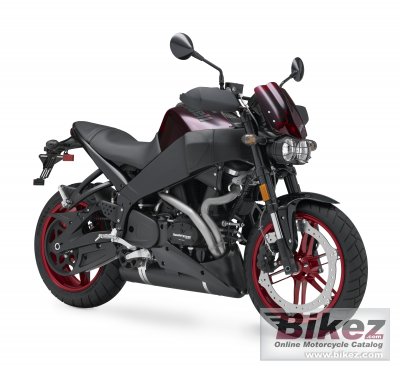

Buell Lightning CityX XB9SX |
|
Year model
|
2009 |
|
Type
|
Naked bike |
| Price as new | US$ 8995. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.4 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Engine size
|
983.3 ccm (60.00 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Effect
|
92.0 HP (67.2 kW)) @ 7500 RPM |
|
Torque
|
94.9 Nm (9.7 kgf-m or 70.0 ft.lbs) @ 5500 RPM |
|
Compression
|
10.0:1 |
|
Bore x stroke
|
88.9 x 79.4 mm (3.5 x 3.1 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection. 45 mm down draft DDFI II fuel injection |
|
Fuel control
|
Overhead Valves (OHV) |
|
Gearbox
|
5-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Wet, multi-plate, compensated |
|
Exhaust system
|
Tuned, tri-pass resonance chamber with mass-centralised mounting |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Black aluminium frame with Uniplanar™ powertrain vibration isolation system, fuel in frame |
|
Rake (fork angle)
|
21.0° |
|
Front suspension
|
43 mm Showa inverted forks with adjustable compression damping, rebound damping and spring preload |
|
Front wheel travel
|
120 mm (4.7 inches) |
|
Rear suspension
|
Showa coil-over monoshock with remote, under-seat reservoir and adjustable compression damping, rebound damping and spring preload |
|
Rear wheel travel
|
129 mm (5.1 inches) |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
180/55-ZR17 |
|
Front brakes
|
Single disc. ZTL™ brake, 6-piston, fixed caliper; 375 mm, single-sided, inside-out, stainless steel, floating rotor |
|
Diameter
|
375 mm (14.8 inches) |
|
Rear brakes
|
Single disc. Two-piston, direct mount caliper; stainless steel, fixed rotor |
|
Diameter
|
240 mm (9.4 inches) |
|
Physical measures and capacities |
|
Seat height
|
765 mm (30.1 inches) If adjustable, lowest setting. |
|
Overall length
|
1935 mm (76.2 inches) |
|
Overall width
|
754 mm (29.7 inches) |
|
Ground clearance
|
110 mm (4.4 inches) |
|
Wheelbase
|
1321 mm (52.0 inches) |
|
Fuel capacity
|
14.45 litres (3.82 US gallons) |
|
Other specifications |
|
Color options
|
Hero Blue translucid; Cherry Bomb translucid |
|
Starter
|
Electric |
