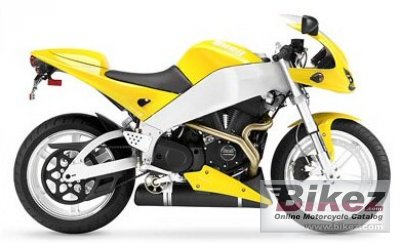

Buell Firebolt XB9R 20052005 Buell Firebolt XB9R specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Model name | Buell Firebolt XB9R |
| Year model | 2005 |
| Type | Sport |
| Price as new | US$ 8695. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.7 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 984.0 ccm (60.04 cubic inches) |
| Type of engine | V2, four-stroke |
| Effect | 92.0 HP (67.2 kW)) @ 7500 RPM |
| Torque | 94.9 Nm (9.7 kgf-m or 70.0 ft.lbs) @ 5500 RPM |
| Compression | 10.0:1 |
| Bore x stroke | 91.2 x 79.5 mm (3.6 x 3.1 inches) |
| Valves per cylinder | 2 |
| Fuel system | Injection. 45 mm down draft DDFI II fuel injection |
| Fuel control | Overhead Valves (OHV) |
| Lubrication system | Dry sump |
| Cooling system | Oil & air |
| Gearbox | 5-speed |
| Transmission type | Shaft drive (cardan) (final drive) |
| Clutch | Wet, multi-plate, compensated |
| Exhaust system | Tuned, tri-pass resonance chamber |
| Chassis, suspension, brakes and wheels | |
| Frame type | Aluminum frame with Uniplanar™ powertrain vibration isolation system - Fuel in Frame |
| Rake (fork angle) | 21.0° |
| Trail | 84 mm (3.3 inches) |
| Front suspension | 43 mm Showa® inverted fork with adjustable compression damping, rebound damping and spring preload |
| Front wheel travel | 120 mm (4.7 inches) |
| Rear suspension | Showa coil-over monoshock with remote, underseat reservoir and adjustable compression damping, rebound damping and spring preload |
| Rear wheel travel | 127 mm (5.0 inches) |
| Front tire | 120/70-ZR17 |
| Rear tire | 180/55-ZR17 |
| Front brakes | Single disc. ZTL™ type brake, 6-piston, fixed caliper, single-sided, inside out, stainless steel, floating rotor |
| Diameter | 336 mm (13.2 inches) |
| Rear brakes | Single disc. Stainless steel, single piston, floating caliper, fixed rotor |
| Diameter | 240 mm (9.4 inches) |
| Physical measures and capacities | |
| Dry weight | 174.6 kg (385.0 pounds) |
| Power/weight ratio | 0.5268 HP/kg |
| Seat height | 775 mm (30.5 inches) If adjustable, lowest setting. |
| Overall length | 1935 mm (76.2 inches) |
| Overall width | 716 mm (28.2 inches) |
| Ground clearance | 110 mm (4.4 inches) |
| Wheelbase | 1321 mm (52.0 inches) |
| Fuel capacity | 14.00 litres (3.70 US gallons) |
| Other specifications | |
| Color options | Sunfire Yellow with Sky White tank badge |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 05 Buell Firebolt XB9R discussion group or the general Buell discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Discussions for every bike
Bikez has discussion forums for every bike. View comments, questions and answers at the 2005 Buell Firebolt XB9R discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes.| Rating sample for this Buell bike | |
Engine performance for the 2005 Buell Firebolt XB9R:  (82.0 out of 100)Click here for complete rating. |
|
