General information |
|
Model name
|

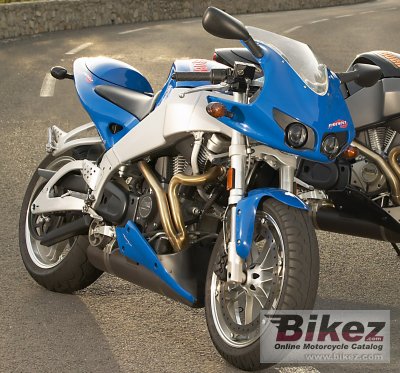

Buell Firebolt XB9R |
|
Year
|
2004 |
|
Category
|
Naked bike |
|
Rating
|
3.6 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Displacement
|
984.0 ccm (60.04 cubic inches) |
|
Engine type
|
Twin, four-stroke |
|
Power
|
92.0 HP (67.2 kW)) @ 7500 RPM |
|
Torque
|
95.0 Nm (9.7 kgf-m or 70.1 ft.lbs) @ 5500 RPM |
|
Compression
|
10.0:1 |
|
Bore x stroke
|
88.9 x 79.4 mm (3.5 x 3.1 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection |
|
Fuel control
|
Overhead Valves (OHV) |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Belt (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Aluminium Frame with Uniplanar powertrain vibration isolation system |
|
Rake (fork angle)
|
21.0° |
|
Trail
|
83 mm (3.3 inches) |
|
Front suspension
|
Showa inverted fork with adjustable compression damping, rebound damping and spring preload |
|
Front wheel travel
|
120 mm (4.7 inches) |
|
Rear suspension
|
Showa shock absorber with adjustable compression damping, rebound damping and spring preload |
|
Rear wheel travel
|
127 mm (5.0 inches) |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
180/55-ZR17 |
|
Front brakes
|
Single disc |
|
Diameter
|
375 mm (14.8 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Physical measures and capacities |
|
Dry weight
|
175.0 kg (385.8 pounds) |
|
Power/weight ratio
|
0.5257 HP/kg |
|
Seat height
|
775 mm (30.5 inches) If adjustable, lowest setting. |
|
Overall height
|
1092 mm (43.0 inches) |
|
Overall length
|
1924 mm (75.7 inches) |
|
Overall width
|
768 mm (30.2 inches) |
|
Ground clearance
|
127 mm (5.0 inches) |
|
Wheelbase
|
1320 mm (52.0 inches) |
|
Fuel capacity
|
14.00 litres (3.70 US gallons) |
|
Other specifications |
|
Color options
|
Battle Blue, Arctic White/Blue, Arctic White/Orange. Wheels and frame: Stardust Silver |
