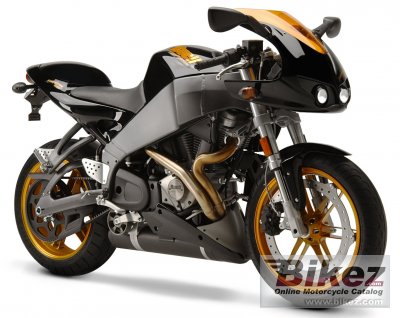

Buell Firebolt XB12R 20042004 Buell Firebolt XB12R specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Model name | Buell Firebolt XB12R |
| Year of manufacture | 2004 |
| Type | Sport |
| Rating | 3.8 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 1203.0 ccm (73.41 cubic inches) |
| Type of engine | Twin, four-stroke |
| Output | 100.0 HP (73.0 kW)) @ 6600 RPM |
| Torque | 109.7 Nm (11.2 kgf-m or 80.9 ft.lbs) @ 6000 RPM |
| Compression | 10.0:1 |
| Bore x stroke | 88.9 x 96.8 mm (3.5 x 3.8 inches) |
| Valves per cylinder | 2 |
| Fuel system | Injection |
| Fuel control | Overhead Valves (OHV) |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Belt (final drive) |
| Chassis, suspension, brakes and wheels | |
| Frame type | Aluminium Frame with Uniplanar powertrain vibration isolation system |
| Rake (fork angle) | 21.0° |
| Trail | 83 mm (3.3 inches) |
| Front suspension | Showa inverted fork with adjustable compression damping, rebound damping and spring preload |
| Front wheel travel | 120 mm (4.7 inches) |
| Rear suspension | Showa shock absorber with adjustable compression damping, rebound damping and spring preload |
| Rear wheel travel | 127 mm (5.0 inches) |
| Front tire | 120/70-ZR17 |
| Rear tire | 180/55-ZR17 |
| Front brakes | Single disc |
| Diameter | 375 mm (14.8 inches) |
| Rear brakes | Single disc |
| Diameter | 240 mm (9.4 inches) |
| Physical measures and capacities | |
| Dry weight | 179.0 kg (394.6 pounds) |
| Power/weight ratio | 0.5587 HP/kg |
| Seat height | 775 mm (30.5 inches) If adjustable, lowest setting. |
| Overall height | 1092 mm (43.0 inches) |
| Overall length | 1924 mm (75.7 inches) |
| Overall width | 768 mm (30.2 inches) |
| Ground clearance | 127 mm (5.0 inches) |
| Wheelbase | 1320 mm (52.0 inches) |
| Fuel capacity | 14.00 litres (3.70 US gallons) |
| Other specifications | |
| Color options | Midnight Black, Racing Red/Graphite-Grey/Translucent Amber |
