General information |
|
Model
|

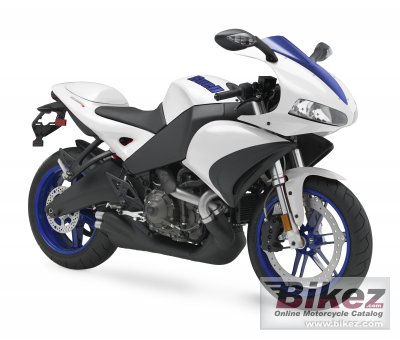

Buell 1125R |
|
Year
|
2009 |
|
Category
|
Sport |
| Price as new | US$ 11995. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.7 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
1125.9 ccm (68.70 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Power
|
146.0 HP (106.6 kW)) @ 9800 RPM |
|
Torque
|
111.2 Nm (11.3 kgf-m or 82.0 ft.lbs) @ 8000 RPM |
|
Compression
|
12.3:1 |
|
Bore x stroke
|
103.0 x 67.5 mm (4.1 x 2.7 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Dual 61 mm down draft throttle bodies, DDFI III fuel injection |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Wet, multi-plate, Hydraulic Vacuum Assist (HVA) slipper – action clutch, hydraulic clutch lever effort |
|
Exhaust system
|
Tuned, tri-pass resonance chamber with integral helmholtz tuning and mass-centralised mounting |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Black aluminium frame, fuel in frame |
|
Rake (fork angle)
|
21.0° |
|
Front suspension
|
47 mm Showa inverted forks with adjustable compression damping, rebound damping and spring preload |
|
Front wheel travel
|
120 mm (4.7 inches) |
|
Rear suspension
|
Showa coil-over monoshock with external piggyback reservoir and adjustable compression damping, rebound damping and spring preload |
|
Rear wheel travel
|
127 mm (5.0 inches) |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
180/55-ZR17 |
|
Front brakes
|
Single disc. ZTL2-type brake, 8-piston, 4 pads, fixed caliper, single-sided, inside out, stainless steel, floating rotor |
|
Diameter
|
375 mm (14.8 inches) |
|
Rear brakes
|
Single disc. Two-piston, direct mount caliper; stainless steel, fixed rotor |
|
Diameter
|
240 mm (9.4 inches) |
|
Physical measures and capacities |
|
Overall length
|
1996 mm (78.6 inches) |
|
Overall width
|
716 mm (28.2 inches) |
|
Ground clearance
|
114 mm (4.5 inches) |
|
Wheelbase
|
1387 mm (54.6 inches) |
|
Fuel capacity
|
20.06 litres (5.30 US gallons) |
|
Other specifications |
|
Color options
|
Racing Red; Arctic White; Midnight Black; |
|
Starter
|
Electric |
