General information |
|
Model
|

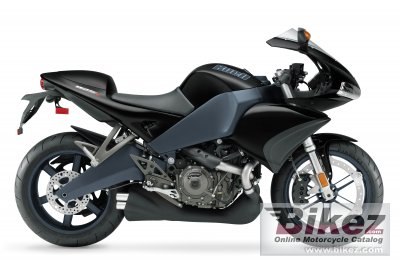

Buell 1125R |
|
Year model
|
2008 |
|
Type
|
Sport |
|
Rating
|
3.7 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
1125.9 ccm (68.70 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Effect
|
146.0 HP (106.6 kW)) @ 9800 RPM |
|
Torque
|
111.2 Nm (11.3 kgf-m or 82.0 ft.lbs) @ 8000 RPM |
|
Compression
|
12.3:1 |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Dual 61 mm down draft throttle bodies, DDFI III fuel injection |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Lubrication system
|
Dry-sump with integrated oil reservoir in lower crankcase |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Wet, multi-plate, Hydraulic Vacuum Assist (HVA) Slipper Action Clutch, hydraulic clutch lever effort |
|
Exhaust system
|
Tuned, tri-pass resonance chamber with integral helmholtz tuning and mass-centralized mounting |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Aluminum frame, fuel in frame |
|
Rake (fork angle)
|
21.0° |
|
Front suspension
|
47 mm Showa inverted forks with adjustable compression damping, rebound damping and spring preload |
|
Front wheel travel
|
120 mm (4.7 inches) |
|
Rear suspension
|
Showa coil over monoshock with adjustable compression damping, rebound damping and spring preload |
|
Rear wheel travel
|
127 mm (5.0 inches) |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
180/55-ZR17 |
|
Front brakes
|
Single disc. 8-piston calipers |
|
Diameter
|
375 mm (14.8 inches) |
|
Rear brakes
|
Single disc. 2-piston calipers |
|
Diameter
|
240 mm (9.4 inches) |
|
Physical measures and capacities |
|
Dry weight
|
170.1 kg (375.0 pounds) |
|
Power/weight ratio
|
0.8584 HP/kg |
|
Overall length
|
1996 mm (78.6 inches) |
|
Overall width
|
716 mm (28.2 inches) |
|
Ground clearance
|
114 mm (4.5 inches) |
|
Wheelbase
|
1387 mm (54.6 inches) |
|
Fuel capacity
|
21.19 litres (5.60 US gallons) |
|
Other specifications |
|
Color options
|
Midnight Black, Diamond Blue Frame |
|
Starter
|
Electric |
