| Brudeli's profilation of this bike |

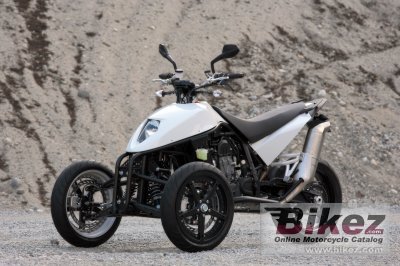

| The vehicle is best described as something in between a motorcycle and ATV-quad. It
leans into corners like a motorcycle but, at the same time, has a lot of the stability of a
sport quad. The idea was born on the Norwegian gravel and winter roads, but the
Leanster has also proven to work extremely well on tarmac roads and go-kart tracks
also. |
|
General information |
|
Motorcycle name
|
Brudeli 654L |
|
Year of manufacture
|
2011 |
|
Type
|
Allround |
| Price as new | US$ 25000. Euro 19500. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
654.7 ccm (39.95 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Engine details
|
KTM 690 engine |
|
Output
|
63.0 HP (46.0 kW)) @ 7500 RPM |
|
Torque
|
65.0 Nm (6.6 kgf-m or 47.9 ft.lbs) @ 6500 RPM |
|
Top speed
|
170.0 km/h (105.6 mph) |
|
Fuel system
|
Carburettor |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
6 gear, dog clutch engagement |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Steel tubular frame |
|
Front suspension
|
WP-4014 (rebound adjustment standard, additional high/low |
|
Front wheel travel
|
180 mm (7.1 inches) |
|
Rear suspension
|
WP-Monoshock with Pro-Lever red. |
|
Rear wheel travel
|
210 mm (8.3 inches) |
|
Front tire
|
120/70-17 |
|
Rear tire
|
160/60-17 |
|
Front brakes
|
Double disc |
|
Diameter
|
325 mm (12.8 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Wheels
|
3.50 x17”, Billet machined. Cast alu 5.00 x 17” |
|
Physical measures and capacities |
|
Dry weight
|
238.0 kg (524.7 pounds) |
|
Power/weight ratio
|
0.2648 HP/kg |
|
Seat height
|
860 mm (33.9 inches) If adjustable, lowest setting. |
|
Overall height
|
1170 mm (46.1 inches) |
|
Overall length
|
2160 mm (85.0 inches) |
|
Overall width
|
1250 mm (49.2 inches) |
|
Ground clearance
|
205 mm (8.1 inches) |
|
Wheelbase
|
1510 mm (59.4 inches) |
|
Other specifications |
|
Color options
|
White |
|
Starter
|
Electric |
|
Comments
|
Bases on a KTM 690 Supermoto. Two front wheels. Leaning angle 45 degrees. Made in Norway. |
