General information |
|
Motorcycle name
|

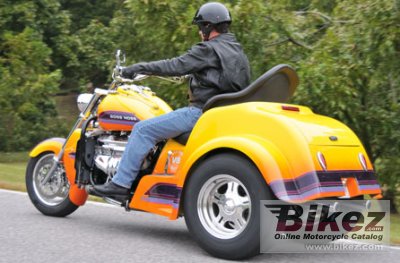

Boss Hoss BHC-9 ZZ4 Trike |
|
Year model
|
2011 |
|
Type
|
Custom / cruiser |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
5700.0 ccm (347.81 cubic inches) |
|
Type of engine
|
V8, four-stroke |
|
Effect
|
355.0 HP (259.1 kW)) @ 5250 RPM |
|
Torque
|
549.2 Nm (56.0 kgf-m or 405.1 ft.lbs) @ 4200 RPM |
|
Fuel system
|
Injection. Holly 680 cfm Throttle Body |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Cooling system
|
Liquid |
|
Gearbox
|
Automatic |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Driveline
|
3-speed automatic transmission with reverse. |
|
Exhaust system
|
2.5´ with dual mufflers |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Chrome-molly tubing and investment cast heat-treated 4130 alloy neck |
|
Rake (fork angle)
|
35.0° |
|
Front suspension
|
63mm inverted forks |
|
Front wheel travel
|
89 mm (3.5 inches) |
|
Rear suspension
|
Dual 17´ coilover shocks, single 17.5 inch rebound damper |
|
Front tire
|
130/90-16 |
|
Rear tire
|
275/60-R15 |
|
Front brakes
|
Double disc. Dual 4-piston calipers |
|
Rear brakes
|
Single disc. 4-piston calipers |
|
Physical measures and capacities |
|
Dry weight
|
680.4 kg (1,500.0 pounds) |
|
Weight incl. oil, gas, etc
|
705.0 kg (1,554.3 pounds) |
|
Power/weight ratio
|
0.5218 HP/kg |
|
Seat height
|
737 mm (29.0 inches) If adjustable, lowest setting. |
|
Overall length
|
2921 mm (115.0 inches) |
|
Overall width
|
1524 mm (60.0 inches) |
|
Ground clearance
|
165 mm (6.5 inches) |
|
Wheelbase
|
2070 mm (81.5 inches) |
|
Fuel capacity
|
32.17 litres (8.50 US gallons) |
|
Other specifications |
|
Color options
|
Red, blue, yellow |
|
Instruments
|
Lectronic Speedo, odometer, tripmeter, volts, water temp., oil pressure, fuel gauge |
|
Factory warranty
|
12 months unlimited miles |
|
Comments
|
Three wheel bike. |
